OSC 13002 Part Description
Manufacturer
Product Description

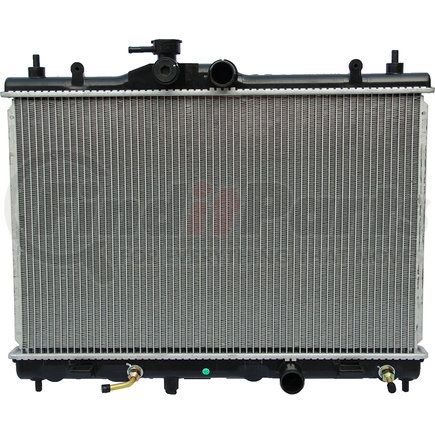

OSC Cooling Products 13002 New Radiator
Application Summary
07-08 NSN VERSA SDN/HB A/T W/VARIABLE TRANS RADIATOR PT/AC
Features & Benefits
- Made from premium grade aluminum.The tubes are cadmium plated inside and out to prevent premature failure. Each radiator is individually pressure tested and engineered for multi-fit without compromising the look and fit.
| APPLICATION | 07-08 NSN VERSA SDN/HB A/T W/VARIABLE TRANS RADIATOR PT/AC |
| POP CODE | N |
OSC 13002 Specifications
Product Attributes
| Core Height | 14 15/16 IN |
| Core Width | 23 1/8 IN |
| Core Thickness | 7/8 IN |
| Core Thickness | 22 MM |
| Inlet Header Width | 2 IN |
| Inlet Header Length | 24 5/8 IN |
| Outlet Header Width | 2 IN |
| Outlet Header Length | 24 5/8 IN |
| Inlet Diameter | 1 3/8 IN |
| Outlet Diameter | 1 3/8 IN |
| Down Flow Or Cross Flow Type | DOWNFLOW |
| Transmission Oil Cooler Included | YES |
| Core Material | ALUMINUM |
| Core Row Quantity | 1 |
| Tank Material | PLASTIC |
| Transmission Oil Cooler Distance between Fittings | 14 3/4 IN |
| Transmission Oil Cooler Diameter | 1 IN |
| Engine Oil Cooler Included | NO |
| ASIN | B003YOPR02 |
| BulletPoint 1 | Hassle free installation |
| BulletPoint 2 | O.E. performance and exceptional quality |
| BulletPoint 3 | Engineering enhancements provide improved cooling and longer life cycle |
| BulletPoint 4 | Components are fitted and torqued in place to factory specifications |
| BulletPoint 5 | Premium grade tubes, fins, headers, tanks, and other components are used to make OSC radiators more durable. |
| BulletPoint 6 | Drop in fit, form and function. All necessary fittings or hardware are included in each unit for an easy install. |
| BulletPoint 7 | Complete Radiators 100% tested up to three times during production: OSC tests the transmission and engine oil coolers prior to installation into the tank. The radiator core is tested prior to assembly and then once the assembly is complete the unit is tested again. |
| BulletPoint 8 | Enhancements added to solve original design failures and to improve the life of high mileage vehicles: adding more fins per inch, thicker cores and even larger transmission coolers to overcome the added heat associated with these vehicles. |
Additional Information
| Country of Origin (Primary) | CN |
| Original Supplier | OSC |
| Original Supplier Part Number | 13002 |
| Harmonized Tariff Code (Schedule B) | 8708915000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| UPC | 00845804060214 |
OSC 13002 Cross References
OSC 13002 Customer Reviews
No reviews yet
Be the first to review this product!
OSC 13002 Manufacturer Information
OSC® produces enhanced and specialized units to help keep trucks and other large vehicles on the road longer. Some vehicles will be on the road for up to 500,000 miles, so it is critical that they are equipped with high-quality automotive parts that are also up for the journey. OSC Automotive particularly specializes in the manufacture of condensers, heaters, and radiators. The company operates in two main U.S. locations: a west coast location in Fullerton, CA and an east coast location in Duluth, GA. All of its products are produced with the goal to meet or surpass OE-quality standards.
