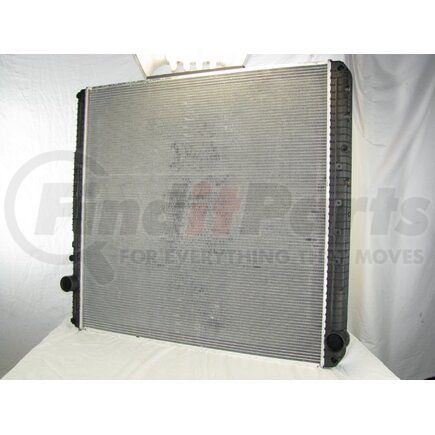

REACH COOLING 42-10296 Part Description
Manufacturer
Product Description
Radiator
Features & Benefits
- Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
- Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
- Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
- We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
- Our fin edges are folded for increased stability and heat disbursement properties.
- Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
- Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
- Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
- Folded fin edges increase stability and heat disbursement properties.
- Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
- We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
- Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
- Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
- Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
| Core Material | Aluminum |
| Tank Material | Plastic |
| Thickness | 2 3/16" |
Application Summary: Application Summary: Freightliner Models: Cascadia (2011-08), LT9000 (2011-08), LT9511 (2011-08), LT9513 (2011-08).
| Make | Freightliner |
| Model | Cascadia, LT9000, LT9511, LT9513 |
| Year | 2008, 2009, 2010, 2011 |
REACH COOLING 42-10296 Specifications
Product Attributes
| Core Height | 977.90 MM |
| Core Width | 38.875 IN |
| Inlet Diameter | 2 9/16 IN |
| Outlet Diameter | 65.1 MM |
| Engine Oil Cooler Included | No |
| Inlet Diameter | 65.074 mm |
| Core Width | 987.425 MM |
| Core Thickness | 2 3/16 IN |
| Radiator Cap Included | No |
| Outlet Diameter | 65.074 MM |
| Core Material | Aluminum |
| Transmission Oil Cooler Included | No |
| Inlet Diameter | 65.1 MM |
| Outlet Diameter | 2 9/16 IN |
| Core Height | 977.9 MM |
| Frame Included | No |
| Down Flow Or Cross Flow Type | Down Flow |
| Core Height | 38.5 IN |
| Core Thickness | 55.6 MM |
| Tank Material | Plastic |
| Core Thickness | 55.549 MM |
| Core Width | 987.43 MM |
Additional Information
| Country of Origin (Primary) | CN |
| UPC | 06949521789732 |
| VMRS Code | 042002001 |
| UNSPSC | 25174002 |
REACH COOLING 42-10296 Cross References
REACH COOLING 42-10296 Fits Vehicles
- Freightliner M2 112 (2011)
- Freightliner Classic (2011)
- Freightliner Cascadia (2012-2013)
REACH COOLING 42-10296 Customer Reviews
No reviews yet
Be the first to review this product!
REACH COOLING 42-10296 Manufacturer Information
Founded in 1999, Reach Cooling® is a worldwide leader in the manufacture and distribution of aftermarket cooling products for light, medium, and heavy duty truck applications. Its fasting-growing division is within its medium and heavy duty truck part sector, offering more than 30 HD condensers, more than 50 HD charge air coolers, and more than 100 HD radiators. All these products are manufactured to meet the highest OE standards to fit some of the most popular US truck makes, including Peterbilt, Mack, International, Isuzu, GMC, Ford, and Freightliner. Headquartered in Miami, Florida, Reach Cooling is fully committed to providing customers with only the best products, most competitive prices, and exceptional service.
