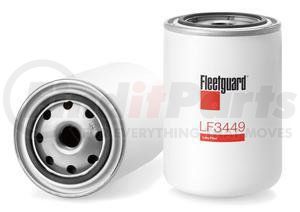

(888) 312-8812 Login SignupFLEETGUARD LF3449 Engine Oil Filter - 5.59 in. Height, 3.68 in. (Largest OD), StrataPore Media, Hanomag-Henschel 114932108
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FLEETGUARD LF3449 Part Description
FLEETGUARD LF3449 Specifications
Product Attributes
| Filter Media Material | StrataPore |
| Height | 5.59 in. (141.99 mm) |
| Bypass Relief Valve Setting | 36.26 psi (250 kPa) |
| Outside Diameter (Largest) | 3.68 in. (93.47 mm) |
| Standpipe | NO |
| Thread Size | 3/4-16 UNF-2B |
| BPV Setting | 250 kPa (36.26 PSI) |
| Largest Od | 93.5 mm |
| Media Type | StrataPore |
| Overall Height | 5.591 in |
| Gasket Inside Diameter | 2.4409462 IN |
| Gasket Inside Diameter | 2.4409462 IN |
| Gasket Inside Diameter | 2.4409462 IN |
| Gasket Outside Diameter | 2.755907 IN |
| Gasket Outside Diameter | 2.755907 IN |
| Height | 5.5905542 in |
| Height | 5.5905542 in |
| Gasket Outside Diameter | 2.755907 IN |
| Largest Outside Diameter | 3.68110435 IN |
| Largest Outside Diameter | 3.68110435 IN |
| Height | 5.5905542 in |
| Largest Outside Diameter | 3.68110435 IN |
Additional Information
| Warranty Distance | 100000 |
| Warranty Distance UOM | DH |
| Warranty Time | 1 |
| Warranty Time UOM | YR |
FLEETGUARD LF3449 Cross References
| Brand | Part Number |
|---|---|
| FGLF3449, F6DZ12B577AA | |
| AP Lockheed | AP3403A |
| BALDWIN | BT267 |
| Bosch | 451203007, 451203059 |
| Coopers | Z1159 |
| Crosland | 630 |
| FRAM | CH2881, PH3534 |
| HANOMAG-HENSCHEL | 114932108 |
| Hanomag | 114932108 |
| Heden | 8175000 |
| Hengst | H17W03, H457W |
| Knecht | FO3715 |
| LUBER-FINER | LFP3411 |
| MAHLE | OC134 |
| Mann-Filter | W94015N |
| Massey Ferguson | 2862642M1 |
| N/A | WL7114, SP681, 2862642, 1448985 |
| PUROLATOR | L30022 |
| Permatic | GL553Z |
| Purolator | PMP312 |
| Renault | 6005019776 |
| Ryco | R2316P |
| Savara | 92825017 |
| Tecnocar | R65 |
| WIX FILTERS | WIX FILTERS, 51411 |
FLEETGUARD LF3449 Customer Reviews
No reviews yet
Be the first to review this product!
FLEETGUARD LF3449 Manufacturer Information
Since 1987, Fleetguard® has been one of the world's leaders in filtration solutions for both on- and off-highway applications. Whether it's air, fuel, oil, or hydraulic filtration, Fleetguard filters provide superior protection against contaminants for engines and sensitive equipment in the agriculture, construction, commercial vehicle, marine, mining, and power generation industries. Each filter is fitted with high-quality filter media for longer service life as well as a more compact design to accommodate shrinking engine compartments found in modern vehicles. All products also undergo extensive performance tests and strict quality control procedures to ensure durability and consistent performance, even in the most demanding operating conditions.
