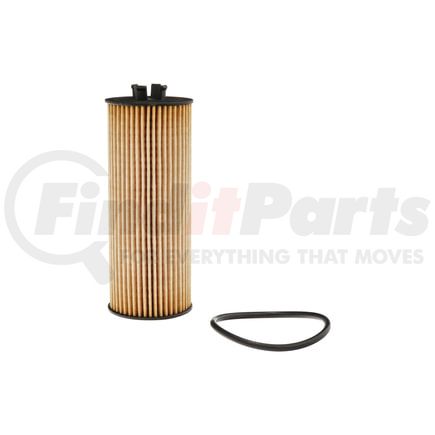

(888) 312-8812 Login SignupFRAM TG10955 Cartridge Oil Filter
Tap to view 5 more
$1099
Limited availability at this price!
In Stock
Get it by Tuesday, Mar 3
FRAM TG10955 Part Description
Manufacturer
Product Description
FRAM, TG10955, Oil Filter
Features & Benefits
- Proven protection for up to 15,000 miles (24,000 kilometers)
- Engineered for tough driving conditions, stop and go traffic, and hot and cold temperatures
- Synthetic blend media provides 99% dirt holding capacity
- Designed for use with synthetic or conventional motor oils
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today's engines
Cartridge Oil Filter
FRAM TG10955 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 5.442 IN |
| Filter Type | Cartridge |
| Non Slip Grip | No |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Grade | Premium |
| Grade Type | Premium |
| Housing Color | NA |
| Inside Diameter Bottom | 0.865 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring Inside Diameter | 2.269 IN |
| O-ring Outside Diameter | 2.424 IN |
| O-ring Thickness | 0.155 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 2.048 in |
| Outer Diameter Top | 2.048 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 0.375 in |
| Torque Nut | No |
| Washable | No |
| Bottom Inside Diameter | 0.865 IN |
| Grade Type | Premium |
| Outside Diameter Top | 2.048 in |
| Replaceable Filter | Yes |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100560193 |
| UNSPSC | 15121501 |
FRAM TG10955 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | PF100G |
| Baldwin | P7492 |
| Blue Print | ADA102128 |
| Bosch | 3335, L3335 |
| Carquest | 84144, 84526, R84526 |
| Carquest Premium Filters | 84144, 84526 |
| Certified | CCH10955 |
| Champ | P990 |
| Champion | 55526T, COC10955 |
| Champion Filters | 55526T, COC10955 |
| Chrysler | 05184526AA, 5184526AA, 68079744AA, 68079744AB, 68079744AC, 68079744AD |
| Defense Filters | DL10955 |
| ECOGARD | X6135 |
| ECOGUARD | S6135 |
| FRAM Core | COR10955ACC |
| FRAM Drive | FD10955 |
| FRAM Force | FF10955 |
| FRAM Pro | FP10955BP |
| FRAM Synthetic Endurance | FE10955 |
| FRAM Titanium | FS10955 |
| FRAM Ultra Synthetic | XG10955 |
| FVP | G7144 |
| Factory Motor Parts | G7144 |
| Forecast | OF78 |
| Group 7 | V6135 |
| Hastings | LF656 |
| Hengst | E720H D205 |
| LUBER-FINER | P990 |
| MAHLE | OX786D |
| Mahle | OX 786D |
| MicroGard | MGL10955, MGL57526 |
| Mighty Distributing System | M990 |
| Mobil | MO990 |
| Mobil 1 | M1C-455, M1C-455A |
| Mopar | MO-744 |
| MotoMaster | MCH10955 |
| NAPA | 7144, 7526 |
| NAPA Gold Filters | 7526 |
| NAPA Platinum Filters | 47526 |
| NAPA Power Sport | 27526 |
| NAPA ProSelect Filters | 27526 |
| Parts Master | 67526, 67526BP, 67526X |
| Pennzoil | PZ180 |
| Performax | PO-180 |
| Premium Guard | PG6135 |
| Prime Guard Filters - Archived | POF6135 |
| Promotive | PH6135 |
| Pronto | PO-6135 |
| PureZone | 8-57526 |
| Purolator | L36135, PL36135 |
| Purolator PureONE | PL36135 |
| Purolator TECH | TL36135 |
| PurolatorONE | PL36135, 57144 |
| Quaker State | QS180 |
| STP | S10955, S10955ML, S10955XL |
| STP Filters | S10955, S10955ML, S10955XL |
| SUPERTECH | ST10955 |
| Service Champ | CF6135 |
| Super Tech Filters | ST10955 |
| Ultra | XG10955 |
| Valvoline | VO-110 |
| Volkswagen | 7B0 115 562 |
| WIX FILTERS | 57526XP, 57526 |
| Warner | WP990 |
| Wix | 57144, 57526, 57526XP |
FRAM TG10955 Fits Vehicles
- Suzuki Aerio (2002)
- Dodge Challenger (2011-2013)
- Volkswagen Routan (2011-2013)
- Dodge Grand Caravan (2011-2013)
- Ram 1500 (2013)
- Jeep Wrangler (2012-2013)
- Chrysler Town & Country (2011-2013)
- Ram C/V (2012-2013)
- Chrysler 300 (2011-2013)
- Chrysler 200 (2011-2013)
- Dodge Journey (2011-2013)
- Dodge Durango (2011-2013)
- Dodge Charger (2011-2013)
- Dodge Avenger (2011-2013)
- Jeep Grand Cherokee (2011-2013)
