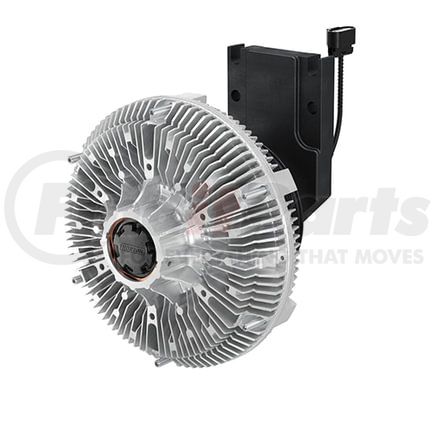

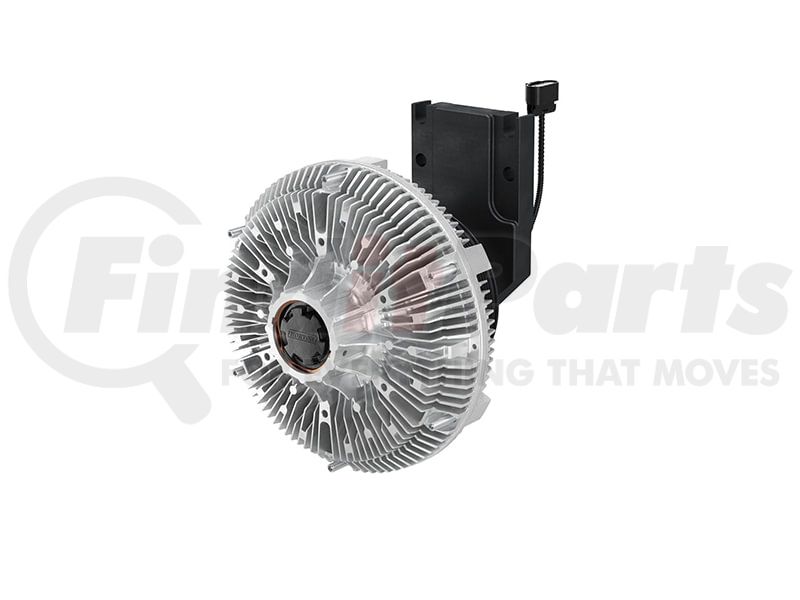

(888) 312-8812 Login SignupHORTON 9910069-2 RCV250 Fully-Variable Fan Drive
MSRP: $2,041.81
$1,78949
Save $252.32
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
HORTON 9910069-2 Part Description
Manufacturer
Product Description
RCV250 Fully-Variable Fan Drive
Application Summary
MACK, VOLVO
Viscous fan drive, engine cooling system, fully variable
HORTON 9910069-2 Specifications
Product Attributes
| BACK PULLEY DIAMETER | 7.87 IN |
| BELT CONFIGURATION | 12K |
| Belt Groove Location | 1.48 IN |
| Center of JB To Top Right Mounting Hole | 4.39 IN |
| Connector Type | TYCO 987650-1 |
| Fan Bolt Circle | 10.11 IN |
| FAN PILOT DIAMETER | 8.86 IN |
| Heavy Duty | 1 |
| HORIZONTAL MOUNTING DISTANCE | 6.73 IN |
| MTG STUD LENGTH | 1.22 IN |
| Overall Length | 6.15 IN |
| Stud Thread Size | M8 X 1.25 IN |
| VERTICAL MOUNTING DISTANCE | 7.21 IN |
| Voltage | 12V |
| Wire Length | 25 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8505200000 |
| Harmonized Tariff Code (HTS) | 8505200000 |
| NAFTA Preference Criterion Code | B |
| OEM's Part Number | 9810069-2 |
| Warranty Distance | 200000 |
| Warranty Distance UOM | DH |
| Warranty Special | 2500 Hours |
| Warranty Special UOM | TX |
| Warranty Time | 24 |
| Warranty Time UOM | MO |
| VMRS Code | 042003036 |
