DELPHI TC2209 Part Description
Manufacturer
Product Description

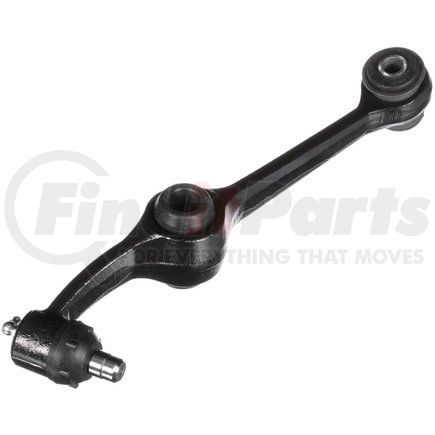

Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC2209 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Control Arm Maximum Width | 3.937 IN |
| Control Arm Maximum Width | 100.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 16.80 MM |
| Ball Joint Stud Length | 56.00 MM |
| Control Arm Maximum Length | 13.386 IN |
| Control Arm Maximum Length | 340.00 MM |
| Mounting Hole Diameter | 14.20 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Greaseable | Yes |
| Boot Color | Black |
| Steering Type | Power |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.661 IN |
| Ball Joint Stud Length | 2.205 IN |
| Mounting Hole Diameter | 0.559 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604275177 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC2209 Cross References
DELPHI TC2209 Fits Vehicles
- Mercury Sable (1986-1995)
- Ford Taurus (1986-1995)
