DELPHI TC3297 Part Description
Manufacturer
Product Description

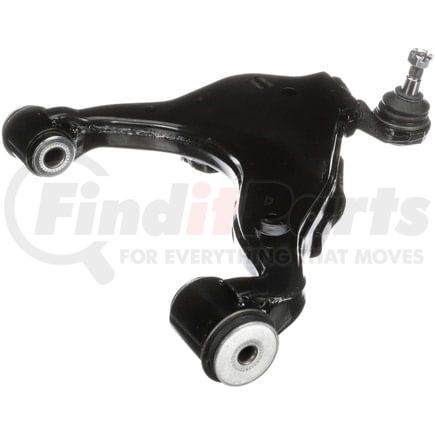

Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC3297 Specifications
Product Attributes
| Position(s) | Front Left Lower |
| Item Grade | Standard Replacement |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Ball Joint Stud Type | Threaded |
| Control Arm Material | Steel |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.630 IN |
| Ball Joint Thread Diameter | 16.00 MM |
| Ball Joint Stud Length | 1.094 IN |
| Ball Joint Stud Length | 27.80 MM |
| Control Arm Maximum Length | 17.638 IN |
| Control Arm Maximum Length | 448.00 MM |
| Bushing Material | Rubber |
| Mounting Hole Diameter | 0.571 IN |
| Mounting Hole Diameter | 14.50 MM |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 16.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.630 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604272947 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC3297 Cross References
DELPHI TC3297 Fits Vehicles
- Toyota FJ Cruiser (2007-2009)
- Toyota 4Runner (2003-2009)
- Lexus GX470 (2003-2009)
