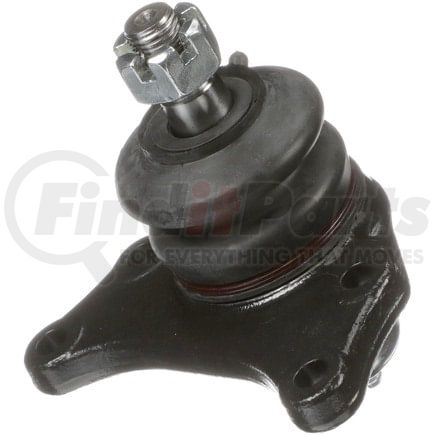

DELPHI TC1723 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1723 Specifications
Product Attributes
| Position(s) | Front Upper |
| Item Grade | Standard Replacement |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Color | Black |
| Stud Thread Diameter | 0.551 IN |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 109 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 0.591 IN |
| Mounting Bolt Length | 15.00 MM |
| Washers Included | Yes |
| Height | 4.504 IN |
| Height | 114.40 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 4 |
| Adjustable | No |
| Greaseable | Yes |
| Stud Thread Length | 0.669 IN |
| Stud Thread Length | 17 MM |
| Wrench Size | 22mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 30.00 MM |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 0.315 IN |
| Mounting Bolt Shank Diameter | 8.00 MM |
| Mounting Bolt Head Diameter | 0.567 IN |
| Mounting Bolt Head Diameter | 14.40 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 0.906 IN |
| Mounting Bolt Thread Length | 23.00 MM |
| Mounting Bolt Thread Diameter | 8.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.669 IN |
| Stud Tapered End 2 Diameter | 17 MM |
| Stud Tapered End 1 Diameter | 0.591 IN |
| Stud Tapered End 1 Diameter | 15 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 3.080 IN |
| Length | 78.23 MM |
| Mounting Bolt Thread Diameter | 0.310 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604276600 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
DELPHI TC1723 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-4038 |
| DORMAN | B9343, B9343XL |
| MAS Industries | B9343, B9343XL |
| MEVOTECH | MK9343 |
| MOOG Chassis Products | K9343 |
| Mevotech | MK6273 |
| N/A | MK9343, 43350-39075, GK9343, 43350-39115 |
| Toyota | 43350-39035 |
DELPHI TC1723 Fits Vehicles
- Toyota T100 (1993-1998)
- Toyota Pickup (1984-1995)
