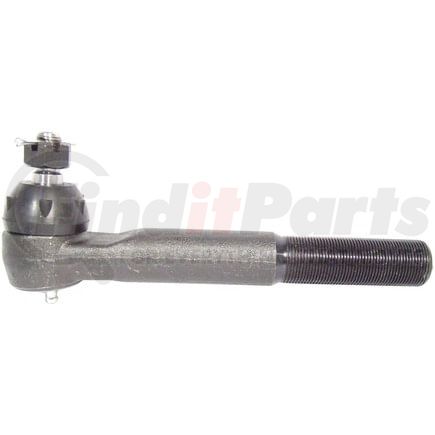

(888) 312-8812 Login SignupDELPHI TA2304 Tie Rod End
MSRP: $58.14
$4399
Save $14.15
Limited availability at this price!
In Stock
Get it by Thursday, Feb 12
DELPHI TA2304 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA2304 Specifications
Product Attributes
| Position(s) | At Pitman Arm, Front Left Inner (To Pitman Arm), Left Inner. For the position specific to your vehicle, refer to the Applications. |
| Item Grade | Standard Replacement |
| Color | Gray |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Dust Boot Included | Yes |
| Width | 45 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 1.000 IN |
| End 2 Thread Diameter | 25.40 MM |
| Height | 91.20 MM |
| Housing Material | Steel |
| Tube Diameter | 1.102 IN |
| Tube Diameter | 28.00 MM |
| Adjustable | No |
| Weight | 2.5 lb |
| Cone Outside Diameter | 17.85 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| Length - Stud Center to End | 8.071 IN |
| Length - Stud Center to End | 205.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 16 |
| End 1 Thread Diameter | 0.551 IN |
| End 1 Thread Diameter | 14.00 MM |
| Shank Length | 17.85 MM |
| Stud Length | 17.85 MM |
| Grade Type | Standard Replacement |
| Grade | Premium |
| Shank Length | 0.703 IN |
| Stud Length | 0.703 IN |
| Cone Outside Diameter | 0.703 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Country of Origin (Primary) | TR |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604277294 |
| VMRS Code | 015004020 |
| UNSPSC | 25174205 |
DELPHI TA2304 Cross References
| Brand | Part Number |
|---|---|
| DORMAN | T3427, T3427XL |
| Ford | 8C3Z3304G, AC3Z3304N, F81A3B406BA, F81Z 3304-BA |
| MAS Industries | T3427 |
| MEVOTECH | TXMS406149 |
| MOOG | ES3427T |
| MOOG Chassis Products | ES3427T, ES80802 |
| Mevotech | MES3427T |
| N/A | 3C3Z 3304-BA, MES80802, T3427XL, GES3427T, T3427RD, 613.65079 |
| TRW | JTE1269 |
DELPHI TA2304 Fits Vehicles
- Ford F-450 Super Duty (1999-2002)
- Ford F-550 Super Duty (1999-2002)
- Ford F-350 Super Duty (1999-2004)
- Ford F-250 Super Duty (1999-2004)
- Ford Excursion (2000-2005)
