(888) 312-8812 Login SignupRAYBESTOS 681995R Raybestos R-Line Brake Rotor
MSRP: $144.80
$11399
Save $30.81
Limited availability at this price!
In Stock
Get it by Thursday, Mar 19
RAYBESTOS 681995R Part Description
Manufacturer
Product Description

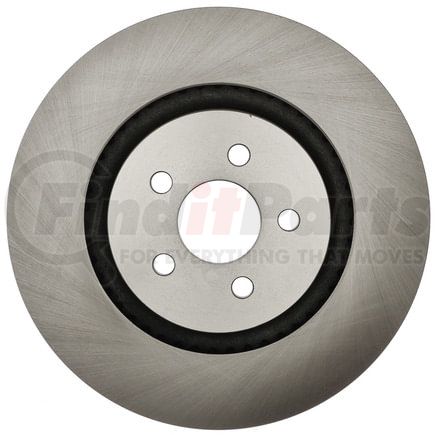

Raybestos R-Line Brake Rotor
Application Summary
2021-2015 Ford Edge Front, 2019-2017 Ford Fusion Front, 2018-2016 Lincoln MKX Front, 2023-2019 Lincoln Nautilus Front, 2020-2017 Lincoln MKZ Front, 2020-2017 Lincoln Continental Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 681995R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.5 IN |
| Center Hole Diameter | 63.5 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.201 IN |
| Discard Thickness | 30.5 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.559 IN |
| Inside Diameter | 217.4 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Mounting Bolt Hole Circle Diameter | 108 MM |
| Mounting Bolt Hole Diameter | 0.618 IN |
| Mounting Bolt Hole Diameter | 15.7 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.26 IN |
| Nominal Thickness | 32 MM |
| Outside Diameter | 13.575 IN |
| Outside Diameter | 344.8 MM |
| Overall Height | 2.063 IN |
| Overall Height | 52.4 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213217643 |
RAYBESTOS 681995R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH539672, YH539672C, YH539672P |
| AUTOXTRA | AX901424 |
| AutoZone | 75036DG, 75036DL |
| Autoxtra | AX901424P |
| BRAKEBEST | 621801RGS, 681995, 681995R |
| Brembo | 09.N278.11 |
| CENTRIC | 121.61120, 125.61120, 126.61120SL, 126.61120SR, 127.61120L, 127.61120R, 128.61120L, 128.61120R, 320.61120C |
| Centric Parts | 121.61120, 125.61120, 126.61120SL, 126.61120SR, 127.61120L, 127.61120R, 128.61120L, 128.61120R, 320.61120C |
| DURA CORP | BR901424 |
| DuraGo | BR901424 |
| Dynamic Friction Company | 604-55006 |
| FORD | F2GZ1125D, F2GZ1125E, G3GZ1125B, K2GZ1125B |
| MAGMA PRODUCTS | PMR205256 |
| MOTORCRAFT | BRRF250, BRRF316, BRRF364 |
| NEWTEK AUTOMOTIVE | R1424 |
| Newtek Automotive USA | R1424 |
| POWERSTOP | AR85173EVC |
| PROMAX | 14-640006 |
| Parts Master | 901424 |
| Qualis | 42325 |
| TopNotch | TN681995GEO |
| UAP | R61120 |
| WORLDPAC | 1407-539672, 1427-731874 |
| Wagner Brake | BD180689E |
| Winhere | 6621801, 6623024 |
RAYBESTOS 681995R Fits Vehicles
- Lincoln Nautilus (2019-2023)
- Lincoln Continental (2017-2020)
- Lincoln MKZ (2017-2020)
- Ford Fusion (2017-2019)
- Lincoln MKX (2016-2018)
- Ford Edge (2015-2022)
