(888) 312-8812 Login SignupRAYBESTOS 681995 Raybestos Specialty - Truck Coated Brake Rotor
$20949
Limited availability at this price!
In Stock
Get it by Wednesday, Mar 18
RAYBESTOS 681995 Part Description
Manufacturer
Product Description

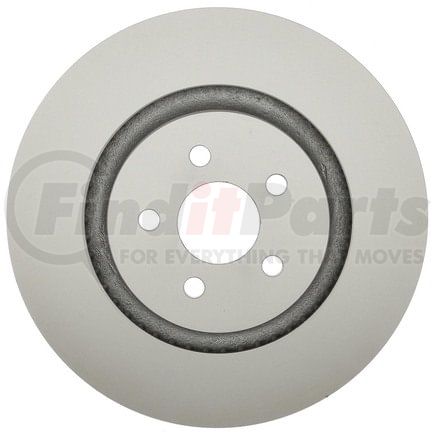

Raybestos Specialty - Truck Coated Brake Rotor
Application Summary
2021-2015 Ford Edge Front, 2019-2017 Ford Fusion Front, 2018-2016 Lincoln MKX Front, 2023-2019 Lincoln Nautilus Front, 2020-2017 Lincoln MKZ Front, 2020-2017 Lincoln Continental Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 681995 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.5 IN |
| Center Hole Diameter | 63.5 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.201 IN |
| Discard Thickness | 30.5 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.559 IN |
| Inside Diameter | 217.4 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Mounting Bolt Hole Circle Diameter | 108 MM |
| Mounting Bolt Hole Diameter | 0.618 IN |
| Mounting Bolt Hole Diameter | 15.7 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.26 IN |
| Nominal Thickness | 32 MM |
| Outside Diameter | 13.575 IN |
| Outside Diameter | 344.8 MM |
| Overall Height | 2.063 IN |
| Overall Height | 52.4 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213217636 |
RAYBESTOS 681995 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH539672, YH539672C, YH539672P |
| AUTOXTRA | AX901424 |
| AutoZone | 75036DG, 75036DL |
| Autoxtra | AX901424P |
| BRAKEBEST | 621801RGS, 681995, 681995R |
| Brembo | 09.N278.11 |
| CENTRIC | 121.61120, 125.61120, 126.61120SL, 126.61120SR, 127.61120L, 127.61120R, 128.61120L, 128.61120R, 320.61120C |
| Centric Parts | 121.61120, 125.61120, 126.61120SL, 126.61120SR, 127.61120L, 127.61120R, 128.61120L, 128.61120R, 320.61120C |
| DURA CORP | BR901424 |
| DuraGo | BR901424 |
| Dynamic Friction Company | 604-55006 |
| FORD | F2GZ1125D, F2GZ1125E, G3GZ1125B, K2GZ1125B |
| MAGMA PRODUCTS | PSR205256 |
| MOTORCRAFT | BRRF250, BRRF316, BRRF364 |
| NEOTEK | 1071154GF |
| NEWTEK AUTOMOTIVE | R1424 |
| Newtek Automotive USA | R1424 |
| POWERSTOP | AR85173EVC |
| PROMAX | 14-640006 |
| Parts Master | 901424 |
| Qualis | 42325 |
| TopNotch | TN681995GEO |
| UAP | R61120 |
| WORLDPAC | 1407-539672, 1427-731874 |
| Wagner Brake | BD180689E |
| Winhere | 6621801, 6623024 |
RAYBESTOS 681995 Fits Vehicles
- Lincoln Nautilus (2019-2023)
- Lincoln Continental (2017-2020)
- Lincoln MKZ (2017-2020)
- Ford Fusion (2017-2019)
- Lincoln MKX (2016-2018)
- Ford Edge (2015-2022)
