RAYBESTOS 980740R Part Description
Manufacturer
Product Description

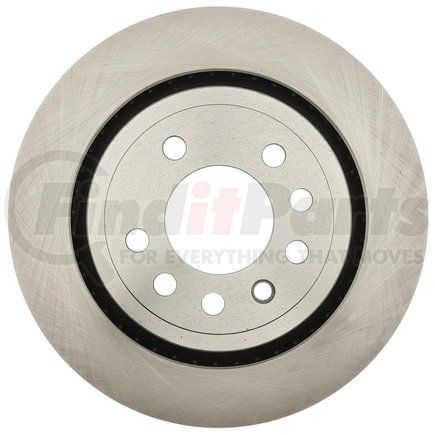

Raybestos R-Line Brake Rotor
Application Summary
2011-2008 Saab 9-3 Rear, 2011 Saab 9-3X Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980740R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.756 IN |
| Center Hole Diameter | 70 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.709 IN |
| Discard Thickness | 18 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.012 IN |
| Inside Diameter | 203.5 MM |
| Mounting Bolt Hole Circle Diameter | 4.331 IN |
| Mounting Bolt Hole Circle Diameter | 110 MM |
| Mounting Bolt Hole Diameter | 0.557 IN |
| Mounting Bolt Hole Diameter | 14.15 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.787 IN |
| Nominal Thickness | 20 MM |
| Outside Diameter | 11.484 IN |
| Outside Diameter | 291.7 MM |
| Overall Height | 1.717 IN |
| Overall Height | 43.6 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213202700 |
RAYBESTOS 980740R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH145629 |
| AUTOZONE | 78402, 78402DG |
| BECK/ARNLEY | 083-3268 |
| BOSCH | 45011425 |
| BRAKEBEST | 45011425, 980740, 980740FZN, 980740R, 980740RGS |
| CENTRIC | 120.38021, 121.38021, 125.38021, 125.38021CRY, 126.38021CSL, 126.38021CSR, 126.38021SL, 126.38021SR, 127.38021L, 127.38021R, 128.38021L, 128.38021R |
| Centric Parts | 120.38021, 121.38021, 125.38021, 125.38021CRY, 126.38021CSL, 126.38021CSR, 126.38021SL, 126.38021SR, 127.38021L, 127.38021R, 128.38021L, 128.38021R |
| DURA CORP | BR34416 |
| Dura Corp | BR900430 |
| DuraGo | BR34416, BR900430 |
| PROMAX | 14-34416 |
| Qualis | 45570 |
| SAAB | 93192627 |
| WAGNER BRAKE | BD180232 |
| WINHERE | 6621342 |
RAYBESTOS 980740R Fits Vehicles
- Saab 9-3X (2010-2011)
- Saab 9-3 (2008-2011)
