RAYBESTOS 980659R Part Description
Manufacturer
Product Description

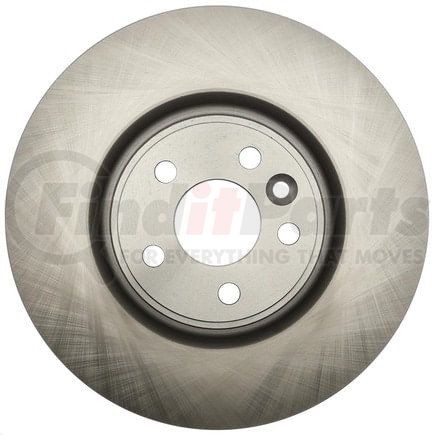

Raybestos R-Line Brake Rotor
Application Summary
2018-2012 Volvo S60 Front, 2016-2008 Volvo XC70 Front, 2016-2007 Volvo S80 Front, 2018-2015 Volvo V60 Front, 2010-2008 Volvo V70 Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980659R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.504 IN |
| Center Hole Diameter | 63.6 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.02 IN |
| Discard Thickness | 25.9 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.25 IN |
| Mounting Bolt Hole Circle Diameter | 107.95 MM |
| Nominal Thickness | 1.1 IN |
| Nominal Thickness | 27.95 MM |
| Outside Diameter | 13.228 IN |
| Outside Diameter | 336 MM |
| Overall Height | 2.055 IN |
| Overall Height | 52.2 MM |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213202625 |
RAYBESTOS 980659R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH200840, YH200840C, YH200840P |
| AUTOXTRA | AX900860 |
| AUTOZONE | 34757, 34757DG |
| BRAKEBEST | 980659, 980659FZN, 980659R, 980659RGS |
| BREMBO | 09.9586.11 |
| CENTRIC | 120.39044, 121.39044, 125.39044, 125.39044CRY, 126.39044CSL, 126.39044CSR, 126.39044SL, 126.39044SR, 127.39044L, 127.39044R, 128.39044L, 128.39044R |
| Centric Parts | 120.39044, 121.39044, 125.39044, 125.39044CRY, 126.39044CSL, 126.39044CSR, 126.39044SL, 126.39044SR, 127.39044L, 127.39044R, 128.39044L, 128.39044R |
| DURA CORP | BR34395, BR900854, BR900860 |
| DuraGo | 900860, BR900860, BR900854 |
| MAGMA PRODUCTS | PMR603036 |
| N/A | 120.39040 |
| NEWTEK AUTOMOTIVE | 34395 |
| Newtek Automotive USA | 34395 |
| POWERSTOP | EBR1002EVC |
| PROMAX | 14-34395 |
| QUALIS | 45460 |
| TRW | 4851 |
| UAP | 980659 |
| VOLVO | 30769057, 307690570, 31499996, 314999960 |
| WAGNER BRAKE | BD180069 |
| WINHERE | 6620728 |
| WORLDPAC | 1427-530138 |
RAYBESTOS 980659R Fits Vehicles
- Volvo V60 (2015-2018)
- Volvo S60 (2012-2018)
- Volvo V70 (2008-2010)
- Volvo XC70 (2008-2016)
- Volvo S80 (2007-2016)
