(888) 312-8812 Login SignupRAYBESTOS 980517R Raybestos R-Line Brake Rotor
$5399
Limited availability at this price!
In Stock
Get it by Thursday, Mar 19
RAYBESTOS 980517R Part Description
Manufacturer
Product Description

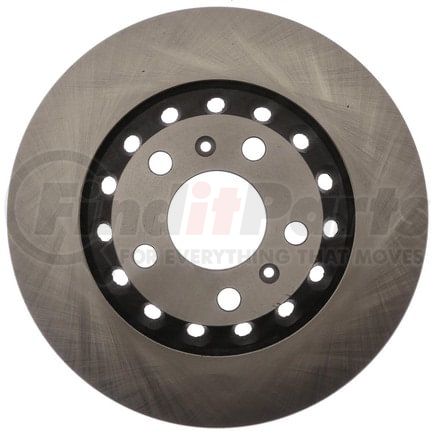

Raybestos R-Line Brake Rotor
Application Summary
2010-2005 Audi A8 Quattro Rear, 2006-2004 Volkswagen Phaeton Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980517R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.787 IN |
| Discard Thickness | 20 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.863 IN |
| Nominal Thickness | 21.9 MM |
| Outside Diameter | 12.198 IN |
| Outside Diameter | 309.85 MM |
| Overall Height | 1.659 IN |
| Overall Height | 42.15 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213204209 |
RAYBESTOS 980517R Cross References
| Brand | Part Number |
|---|---|
| AUDI | 4E0615601K |
| AUTOZONE | 34288, 34288DG |
| BRAKEBEST | 14010047, 980517, 980517R, 980517RGS |
| CENTRIC | 121.33102 |
| Centric Parts | 120.33102, 121.33102, 125.33102 |
| DURA CORP | BR34329, BR901212 |
| DuraGo | BR901212 |
| MAGMA PRODUCTS | PMR583058 |
| NEWTEK AUTOMOTIVE | 34329 |
| Newtek Automotive USA | 34329 |
| PROMAX | 14-34329 |
| Qualis | 34288 |
| UAP | 34329, R33109 |
| WAGNER BRAKE | BD180098 |
RAYBESTOS 980517R Fits Vehicles
- Audi A8 Quattro (2005-2010)
- Volkswagen Phaeton (2004-2006)
