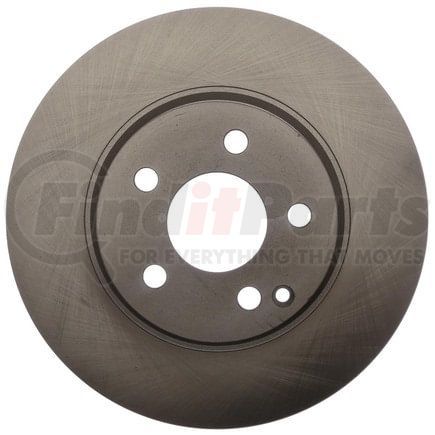

(888) 312-8812 Login SignupRAYBESTOS 980269R Raybestos R-Line Brake Rotor
$5549
Limited availability at this price!
In Stock
Get it by Thursday, Mar 12
RAYBESTOS 980269R Part Description
Manufacturer
Product Description
Raybestos R-Line Brake Rotor
Application Summary
2006 Mercedes-Benz E350 Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980269R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.638 IN |
| Center Hole Diameter | 67 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1 IN |
| Discard Thickness | 25.4 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 0.597 IN |
| Mounting Bolt Hole Diameter | 15.15 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28 MM |
| Outside Diameter | 12.283 IN |
| Outside Diameter | 312 MM |
| Overall Height | 2.539 IN |
| Overall Height | 64.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213204094 |
RAYBESTOS 980269R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH145551, YH145551C, YH145551P, YH200484 |
| AUTOXTRA | AX34246 |
| AUTOZONE | 34246, 34246DG |
| BENDIX | 145551 |
| BRAKEBEST | 36010979, 980269, 980269R, 980269RGS |
| BREMBO | 09.9481.11, 25774 |
| CENTRIC | 120.35062, 121.35062, 125.35062, 125.35062CRY, 126.35062SL, 126.35062SR, 127.35062L, 128.35062, 128.35062CRY, 128.35062L, 228.35062, 320.35062H |
| CONTINENTAL-CONTITECH | CW28142 |
| Centric Parts | 120.35062, 121.35062, 125.35062, 125.35062CRY, 126.35062SL, 126.35062SR, 127.35062L, 128.35062, 128.35062CRY, 128.35062L, 228.35062, 320.35062H |
| DURA CORP | BR34246 |
| DuraGo | BR34246 |
| Dynamic Friction Company | 624-63052 |
| MAGMA PRODUCTS | PMR383064 |
| MERCEDES-BENZ | 2114210912 |
| MIGHTY DISTRIBUTING SYSTEM | 34246 |
| NAPA BRAKES | SDK6368, TSR4748 |
| NEWTEK AUTOMOTIVE | 34246 |
| Newtek Automotive USA | 34246 |
| PEP BOYS | 34246G |
| PILENGA | V297 |
| PROMAX | 14-34246 |
| QUALIS | 34246 |
| TRW | 4264 |
| UAP | 34246 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51637 |
| WABCO | PS34246 |
| WABCO - Archived | PS34246 |
| WAGNER BRAKE | BD180133, BD180133E |
| WINHERE | 662934 |
| Wagner Brake | BD180033 |
RAYBESTOS 980269R Fits Vehicles
- Mercedes-Benz SL500 (2004-2006)
- Mercedes-Benz E500 (2003-2006)
- Mercedes-Benz E350 (2006)
