(888) 312-8812 Login SignupRAYBESTOS 980638R Raybestos R-Line Brake Rotor
MSRP: $117.58
$8999
Save $27.59
Limited availability at this price!
In Stock
Get it by Tuesday, Mar 17
RAYBESTOS 980638R Part Description
Manufacturer
Product Description

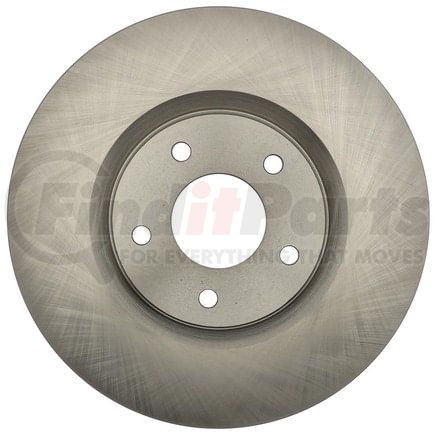

Raybestos R-Line Brake Rotor
Application Summary
2012-2007 Nissan Sentra Front, 2017-2014 Nissan Juke Front, 2016-2009 Renault Koleos Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980638R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.02 IN |
| Discard Thickness | 25.9 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Nominal Thickness | 1.1 IN |
| Nominal Thickness | 27.95 MM |
| Outside Diameter | 12.583 IN |
| Outside Diameter | 319.6 MM |
| Overall Height | 1.732 IN |
| Overall Height | 44 MM |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213202601 |
RAYBESTOS 980638R Cross References
| Brand | Part Number |
|---|---|
| AUTOXTRA | AX900956 |
| AUTOZONE | 44591, 44591DG |
| BENDIX | PRT5722 |
| BOSCH | 40011480, 40011557 |
| BRAKEBEST | 40011480, 40011557, 980638, 980638FZN, 980638R, 980638RGS |
| BrakeBest | 680639RGS, 680640RGS |
| CENTRIC | 120.42098, 120.42098CRY, 121.42098, 126.42098CSL, 126.42098CSR, 126.42098SL, 126.42098SR, 127.42098L, 127.42098R, 320.42098 |
| Centric Parts | 120.42098, 120.42098CRY, 121.42098, 126.42098CSL, 126.42098CSR, 126.42098SL, 126.42098SR, 127.42098L, 127.42098R, 320.42098 |
| DATSUN/NISSAN | 40206ET01A |
| DURA CORP | BR31513, BR900956 |
| DuraGo | 900956, BR31513, BR900956 |
| MAGMA PRODUCTS | PMR425109 |
| NAPA BRAKES | SDK6681 |
| NEWTEK AUTOMOTIVE | 31513 |
| Newtek Automotive USA | 31513 |
| Nissan | 40206ET01A |
| PROMAX | 14-31513 |
| QUALIS | 44591 |
| RENAULT | 402069828R |
| UAP | 31513 |
| Ultra Brake | NI-4018 |
| WAGNER BRAKE | BD126562 |
| WINHERE | 6620745 |
| WORLDPAC | 1407-75262 |
RAYBESTOS 980638R Fits Vehicles
- Nissan Juke (2014-2017)
- Renault Koleos (2009-2016)
- Nissan Sentra (2007-2012)
