DELPHI TC1668 Part Description
Manufacturer
Product Description

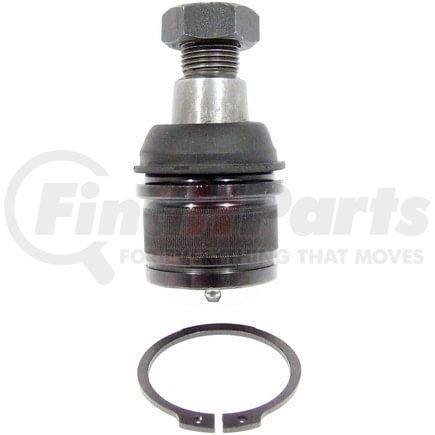

Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1668 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 3.839 IN |
| Maximum Outside Diameter | 97.50 MM |
| Color | Black |
| Stud Thread Diameter | 0.563 IN |
| Stud Thread Diameter | 14.28 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 81 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | Yes |
| Height | 4.531 IN |
| Height | 115.10 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | Yes |
| Stud Thread Length | 0.898 IN |
| Stud Thread Length | 22.8 MM |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Distance Between Mounting Holes | 71.50 MM |
| Dust Boot Material | Rubber |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.687 IN |
| Stud Tapered End 2 Diameter | 17.45 MM |
| Stud Tapered End 1 Diameter | 0.608 IN |
| Stud Tapered End 1 Diameter | 15.45 MM |
| Stud Threads Per Inch | 18 |
| Stud Thread Pitch | 0.7 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604276778 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC1668 Cross References
| Brand | Part Number |
|---|---|
| Chrysler | 4897594AB |
| DORMAN | BJ86315, BJ86315XL |
| Ford | BC3Z 3050-B, MCF2223 |
| MAS Industries | B8607, BJ86315, BJ86315XL |
| MEVOTECH | TXK8607T |
| MOOG | K8607T005 |
| MOOG Chassis Products | K8607T |
| Mevotech | MK8607T |
| N/A | 1C3Z 3050-BA, 5C3Z 3050-AB, GK8607T, TXK8607T, JBJ1089, 611.65013, 5C3Z3050A, F6TZ 3050-HA |
| TRW | JBJ7050, JBJ1173 |
DELPHI TC1668 Fits Vehicles
- Ford F-550 Super Duty (1999-2004)
- Ford F-450 Super Duty (1999-2004, 2008-2019)
- Ford F-350 Super Duty (1999-2022)
- Ford F-350 (1992-1997)
- Ford F-250 Super Duty (1999-2022)
- Ford F-250 (1999)
- Ford Excursion (2000-2005)
- Dodge Ram 3500 (1994-1999)
- Dodge Ram 2500 (1994-1999)
