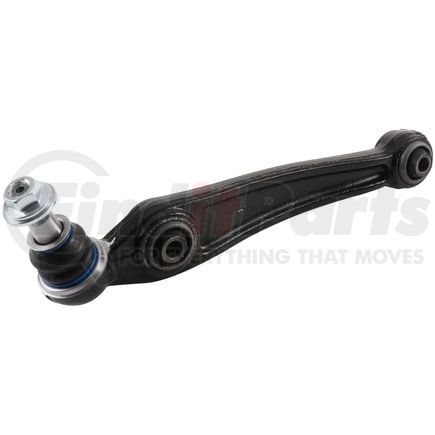

(888) 312-8812 Login SignupDELPHI TC2229 Control Arm and Ball Joint Assembly
Tap to view 20 more
MSRP: $137.91
$11249
Save $25.42
Limited availability at this price!
In Stock
Get it by Tuesday, Mar 3
DELPHI TC2229 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC2229 Specifications
Product Attributes
| Position(s) | Front Left Lower Rearward |
| Item Grade | Standard Replacement |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 2.362 IN |
| Control Arm Maximum Width | 60.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 80.00 MM |
| Control Arm Maximum Length | 15.748 IN |
| Control Arm Maximum Length | 400.00 MM |
| Mounting Hole Diameter | 14.20 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Stud Length | 3.150 IN |
| Thread Diameter | 0.551 IN |
| Mounting Hole Diameter | 0.559 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604256251 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC2229 Cross References
| Brand | Part Number |
|---|---|
| BMW | 3112 6771 893 |
| Beck/Arnley | 101-6798, 102-6798 |
| CORTECO | 49395235 |
| DORMAN | CB14363, CB14363PR |
| Dorman | 521-163 |
| MAS Industries | CB14363, CB14363PR |
| MEYLE | 316 050 0036 |
| MOOG Chassis Products | K620800, RK620800, 102-6798 |
| Mcquay-Norris | FA3408 |
| Mevotech | CMS101083 |
| N/A | CK620800, GS101083 |
| Raybestos Chassis | 507-1865 |
| TRW | JTC1454 |
| VAICO | V20-1173 |
DELPHI TC2229 Fits Vehicles
- BMW X6 (2008-2014)
- BMW X5 (2007-2013)
