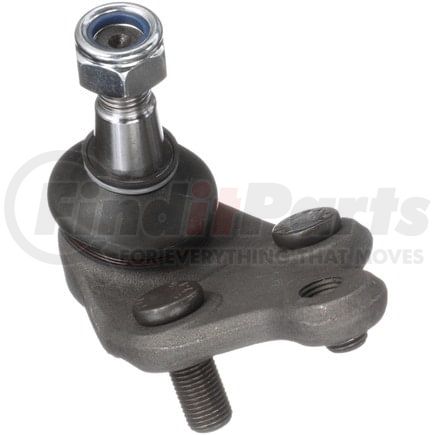

DELPHI TC632 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC632 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 1.890 IN |
| Maximum Outside Diameter | 48.00 MM |
| Color | Gray |
| Stud Thread Diameter | 0.551 IN |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 75 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 0.996 IN |
| Mounting Bolt Length | 25.30 MM |
| Washers Included | No |
| Height | 3.740 IN |
| Height | 95.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.661 IN |
| Stud Thread Length | 16.8 MM |
| Wrench Size | 19mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 35.00 MM |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 0.472 IN |
| Mounting Bolt Shank Diameter | 12.00 MM |
| Mounting Bolt Head Diameter | 0.567 IN |
| Mounting Bolt Head Diameter | 14.40 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 0.787 IN |
| Mounting Bolt Thread Length | 20.00 MM |
| Mounting Bolt Thread Diameter | 12.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.72 IN |
| Stud Tapered End 2 Diameter | 18.3 MM |
| Stud Tapered End 1 Diameter | 0.622 IN |
| Stud Tapered End 1 Diameter | 15.8 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 123.00 MM |
| Length | 4.840 IN |
| Mounting Bolt Thread Diameter | 0.470 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604274002 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC632 Cross References
DELPHI TC632 Fits Vehicles
- Toyota Celica (1986-1989)
