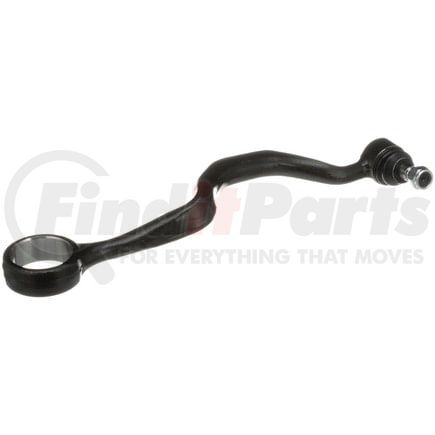

(888) 312-8812 Login SignupDELPHI TC511 Control Arm and Ball Joint Assembly
Tap to view 20 more
$5249
Limited availability at this price!
1 Day Lead Time
Get it by Wednesday, Mar 4
DELPHI TC511 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC511 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower Forward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | No |
| Ball Joint Mounting Type | Machined |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 4.724 IN |
| Control Arm Maximum Width | 120.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 61.00 MM |
| Control Arm Maximum Length | 17.323 IN |
| Control Arm Maximum Length | 440.00 MM |
| Mounting Hole Diameter | 57.90 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Stud Length | 2.402 IN |
| Thread Diameter | 0.551 IN |
| Mounting Hole Diameter | 2.280 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604259610 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC511 Cross References
| Brand | Part Number |
|---|---|
| BMW | 3112 1113 711, 3112 1132 159, 3112 1133 711, 3112 1141 097, 3112 2226 581 |
| Beck/Arnley | 101-5103, 102-5103 |
| CORTECO | 49399662 |
| DORMAN | CB14017, CB14017PR |
| Dorman | 520-735 |
| MAS Industries | CB14017, CB14017PR, CB9925 |
| MEVOTECH | CMK9924 |
| MEYLE | 3160504332/HD |
| MOOG | RK9924 |
| MOOG Chassis Products | CK9925, K9925, RK9925 |
| Mcquay-Norris | FA4088 |
| Mevotech | CMK9925, MK9925 |
| N/A | CMK90506, 520-733, GK90506, CB9127, CB9127PR |
| TRW | 10703, JTC1203 |
| VAICO | V20-7037-1 |
DELPHI TC511 Fits Vehicles
- BMW 525iT (1993)
- BMW M5 (1991-1993)
- BMW 540i (1994-1995)
- BMW 535i (1989-1993)
- BMW 530i (1994-1995)
- BMW 525i (1989-1995)
