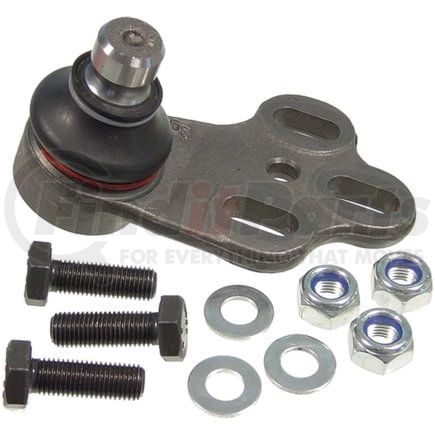

(888) 312-8812 Login SignupDELPHI TC502 Ball Joint
Tap to view 2 more
MSRP: $27.00
$2099
Save $6.01
Limited availability at this price!
In Stock
Get it by Wednesday, Mar 11
DELPHI TC502 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC502 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower |
| Material | Steel |
| Maximum Outside Diameter | 2.520 IN |
| Maximum Outside Diameter | 64.00 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 64 MM |
| Type | Premium |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 1.433 IN |
| Mounting Bolt Length | 36.40 MM |
| Washers Included | Yes |
| Height | 3.425 IN |
| Height | 87.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | No |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 49.00 MM |
| Dust Boot Material | Rubber |
| Bushing Quantity | 0 |
| Mounting Bolt Head Diameter | 19.60 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 30.00 MM |
| Mount Plate Included | No |
| Tapered Stud | No |
| Length | 114.00 MM |
| Length | 4.490 IN |
| Mounting Bolt Head Diameter | 0.770 IN |
| Mounting Bolt Thread Length | 1.180 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604259528 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC502 Cross References
| Brand | Part Number |
|---|---|
| Audi | 893 407 365B, 893 407 365D, 895 407 365, 8A0 407 365 |
| Beck/Arnley | 101-4103 |
| CORTECO | 49399200 |
| DORMAN | BJ12083, BJ12083PR |
| Import Direct | BJ07056 |
| MAS Industries | BJ12083 |
| MEYLE | 1160107175 |
| MOOG Chassis Products | K90504 |
| Mevotech | MK90504 |
| N/A | 894407365E, BJ12083PR |
| TRW | JBJ318, JBJ117 |
DELPHI TC502 Fits Vehicles
- Audi Coupe Quattro (1990-1991)
- Audi 90 Quattro (1993-1995)
- Audi 90 (1993-1995)
- Audi 80 Quattro (1992)
- Audi 80 (1992)
