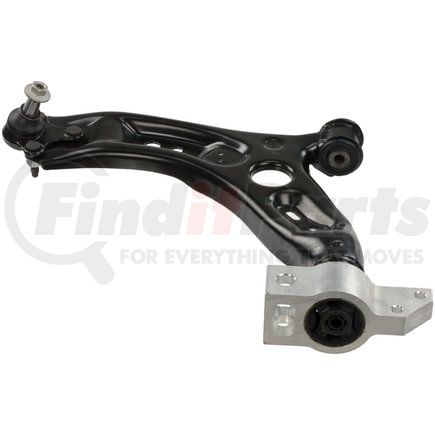

(888) 312-8812 Login SignupDELPHI TC3311 Control Arm and Ball Joint Assembly
Tap to view 2 more
MSRP: $163.29
$11749
Save $45.80
Limited availability at this price!
In Stock
Get it by Thursday, Mar 5
DELPHI TC3311 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC3311 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Bolt In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 4.496 IN |
| Control Arm Maximum Width | 114.20 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.472 IN |
| Ball Joint Thread Diameter | 12.00 MM |
| Ball Joint Stud Length | 0.709 IN |
| Ball Joint Stud Length | 18.00 MM |
| Control Arm Maximum Length | 15.055 IN |
| Control Arm Maximum Length | 382.40 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 12.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.472 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604270127 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC3311 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 102-7664 |
| DORMAN | CB43343, CB43333, 526-635, 526-951, CB43333PR, CB43343PR |
| MAS Industries | CB43333, CB43333PR |
| MOOG | RK622854 |
| MOOG Chassis Products | RK622854 |
| Mevotech | CMS701116 |
| N/A | 3C0 407 365 A, 526-635, CK622854, 526-951 |
| UNITY AUTOMOTIVE | SC-700004, 2C-CAB622854, CAB622854 |
| Volkswagen | 5N0 407 151 |
DELPHI TC3311 Fits Vehicles
- Volkswagen Tiguan Limited (2017-2018)
- Volkswagen CC (2011-2017)
- Volkswagen Passat CC (2010)
- Volkswagen Tiguan (2010-2017)
