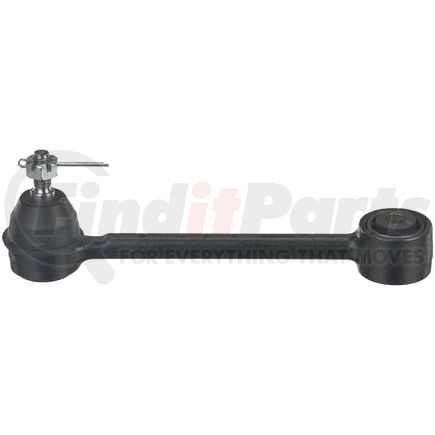

(888) 312-8812 Login SignupDELPHI TC3190 Control Arm and Ball Joint Assembly
Tap to view 2 more
MSRP: $123.08
$6599
Save $57.09
Limited availability at this price!
In Stock
Get it by Thursday, Mar 5
DELPHI TC3190 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC3190 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Rear, Rear Upper Forward. For the position specific to your vehicle, refer to the Applications. |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 1.732 IN |
| Control Arm Maximum Width | 44.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.394 IN |
| Ball Joint Thread Diameter | 10.00 MM |
| Ball Joint Stud Length | 0.827 IN |
| Mounting Hole Diameter | 12.20 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Pre-Greased | Yes |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Ball Joint Stud Length | 21.01 MM |
| Thread Diameter | 10.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.394 IN |
| Mounting Hole Diameter | 0.480 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604270547 |
| VMRS Code | 016008121 |
| UNSPSC | 25172013 |
DELPHI TC3190 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-6662, 102-6662, 102-5899, 102-6130, 102-7265 |
| CORTECO | 49398621 |
| DORMAN | LA60600, LA60600PR, LA63680, LA63680PR |
| Dorman | 522-006 |
| Hyundai | 55250-2H000, 55250-1H000 |
| Kia | 55250-1D000, 55250-2G001, 55250-2S000 |
| MAS Industries | CB63057, LA60600, LA60600PR |
| MEVOTECH | CMS90124 |
| MOOG Chassis Products | K620506, RK620506, RK622280, 102-6662, 102-7265 |
| Mevotech | MS90124, CMS901056 |
| N/A | CMS901123, GS90124, CMS90124, LA63680, LA63680PR, RK622349, CK620506, 522-401, 521-018 |
DELPHI TC3190 Fits Vehicles
- Hyundai Tucson (2010-2015)
- Kia Sportage (2010-2016)
- Kia Magentis (2007-2010)
- Kia Rondo (2007-2012)
- Hyundai Elantra (2007-2012)
- Kia Optima (2006-2010)
