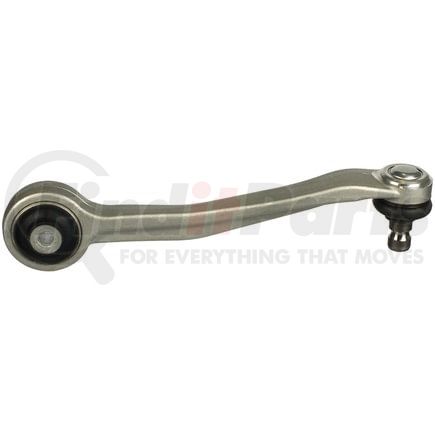

(888) 312-8812 Login SignupDELPHI TC2975 Control Arm and Ball Joint Assembly
Tap to view 2 more
$4749
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Mar 5
DELPHI TC2975 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC2975 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Upper Forward, Front Right Upper Rearward. For the position specific to your vehicle, refer to the Applications. |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Grooved |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 1.772 IN |
| Control Arm Maximum Width | 45.00 MM |
| Control Arm Color | Gray |
| Ball Joint Thread Diameter | 16.0 MM |
| Ball Joint Stud Length | 40.00 MM |
| Control Arm Maximum Length | 11.339 IN |
| Control Arm Maximum Length | 288.00 MM |
| Mounting Hole Diameter | 10.20 MM |
| Bushing Material | Rubber |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Stud Length | 1.575 IN |
| Mounting Hole Diameter | 0.402 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604269275 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
DELPHI TC2975 Cross References
| Brand | Part Number |
|---|---|
| Audi | 8K0 407 510 B, 8K0 407 510 M, 8K0 407 510 P, 8K0 407 510 R, 8K0 407 510J |
| Beck/Arnley | 102-7515 |
| DORMAN | 522-110, 524-508, CB12128, CB12128PR, CB12098PR, CB12098 |
| MAS Industries | CA12538 |
| MEYLE | 1160500165/HD |
| MOOG Chassis Products | K621124, RK620999, RK621124 |
| Mevotech | CMS70191 |
| N/A | CMS70144, 521-254, CB12098, CB12098PR, CK621124 |
| Porsche | 8K0 407 510 B, 8K0 407 510 P |
| TRW | JTC1289 |
| VAICO | V102319, V10-4048 |
DELPHI TC2975 Fits Vehicles
- Porsche Macan (2015-2021)
- Audi A4 allroad (2013-2016)
- Audi allroad (2013-2016)
- Audi RS7 (2014-2018)
- Audi S6 (2013-2018)
- Audi S7 (2013-2018)
- Audi A6 (2012-2018)
- Audi A6 Quattro (2012-2018)
- Audi A7 Quattro (2012-2018)
- Audi A5 (2010-2011)
- Audi S5 (2010-2013)
- Audi A5 Quattro (2010-2012)
- Audi Q5 (2009-2012)
