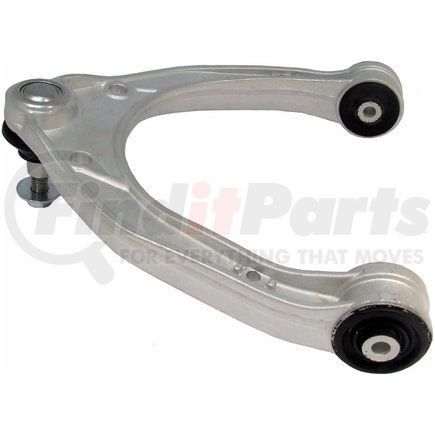

(888) 312-8812 Login SignupDELPHI TC2529 Control Arm and Ball Joint Assembly
Tap to view 2 more
$19749
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Mar 19
DELPHI TC2529 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC2529 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 3.886 IN |
| Control Arm Maximum Width | 98.70 MM |
| Control Arm Color | Gray |
| Ball Joint Thread Diameter | 0.472 IN |
| Ball Joint Thread Diameter | 12.00 MM |
| Ball Joint Stud Length | 0.984 IN |
| Ball Joint Stud Length | 25.00 MM |
| Control Arm Maximum Length | 11.417 IN |
| Control Arm Maximum Length | 290.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 12.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.472 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604257944 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
DELPHI TC2529 Cross References
| Brand | Part Number |
|---|---|
| Audi | 7L0 407 021, 7L0 407 021 A, 7L0 407 021 B |
| Beck/Arnley | 101-6144, 102-6144, 102-7616 |
| CORTECO | 49395234 |
| DORMAN | CB43005, CB43005PR |
| Deeza | AD-H245 |
| Dorman | 520-977 |
| MAS Industries | CB43005, CB43005PR |
| MEYLE | 1160500194HD, 116 050 0017, 1160500017S, 116 050 0190 S |
| MOOG | RK620768 |
| MOOG Chassis Products | CK620622, K620622, K620768, RK620622, RK620768, 102-6144 |
| Mevotech | CMS70100, MS70100 |
| N/A | GS70100, RK622884 |
| Porsche | 955 341 027 00, 955 341 027 01, 955 341 027 02 |
| TRW | JTC1059 |
| VAICO | V10-0641 |
| Volkswagen | 7L0 407 021, 7L0 407 021 A, 7L0 407 021 B |
DELPHI TC2529 Fits Vehicles
- Audi Q7 (2007-2013)
- Volkswagen Touareg (2004-2010)
- Porsche Cayenne (2003-2006, 2008-2010)
