DELPHI TC1465 Part Description
Manufacturer
Product Description

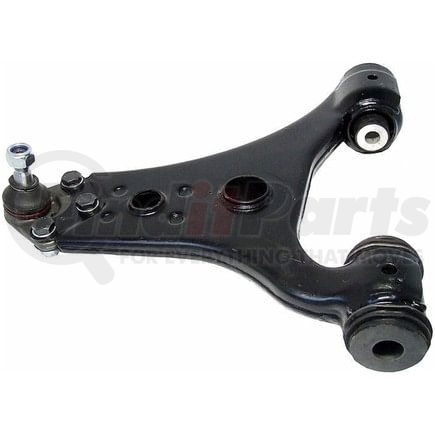

Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1465 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 3.622 IN |
| Control Arm Maximum Width | 92.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 0.748 IN |
| Ball Joint Stud Length | 19.00 MM |
| Control Arm Maximum Length | 14.724 IN |
| Control Arm Maximum Length | 374.00 MM |
| Mounting Hole Diameter | 1.378 IN |
| Mounting Hole Diameter | 35.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604252581 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC1465 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-5003, 102-7640 |
| CORTECO | 49397586, 49398182 |
| DORMAN | 522-141, CB28363, CB28363PR |
| Deeza | MD-L605 |
| MAS Industries | CB28363, SL30563, SL52035, SL52505, SL65105, SL68115, SL81165 |
| MEYLE | 0146100008, 0160500041 |
| MOOG Chassis Products | CK621703, K621703, K80258, RK621703 |
| Mercedes-Benz | 169 330 05 07, 169 330 07 07, 169 330 09 07, A169 330 0507, A169 330 0707, A169 330 0907 |
| Mevotech | CMS10194, MK80258, MS10194, MS80822, MS90802, MS90803, MS90804 |
| TRW | JTC1402 |
| VAICO | V307466 |
DELPHI TC1465 Fits Vehicles
- Mercedes-Benz B200 (2006-2011)
