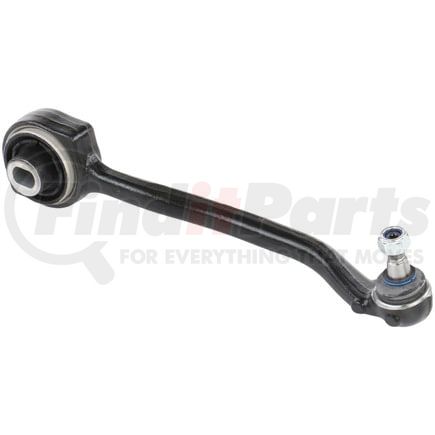

(888) 312-8812 Login SignupDELPHI TC1282 Control Arm and Ball Joint Assembly
Tap to view 23 more
MSRP: $78.68
$6999
Save $8.69
Limited availability at this price!
In Stock
Get it by Monday, Mar 2
DELPHI TC1282 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1282 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower Rearward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Greaseable | No |
| Control Arm Maximum Width | 3.346 IN |
| Control Arm Maximum Width | 85.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 60.00 MM |
| Control Arm Maximum Length | 16.142 IN |
| Control Arm Maximum Length | 410.00 MM |
| Mounting Hole Diameter | 14.50 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Stud Length | 2.362 IN |
| Thread Diameter | 0.551 IN |
| Mounting Hole Diameter | 0.571 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604251614 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC1282 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-6282, 102-6282 |
| CORTECO | 49398482 |
| DORMAN | CB28164, CB28164PR |
| Deeza | MB-H109 |
| Dorman | 520-956 |
| MAS Industries | CB28164 |
| MEYLE | 0160500090/HD, 0160500091/HD, 0160500030, 0160500094/HD |
| MOOG | RK80533 |
| MOOG Chassis Products | CK80534, K80534, RK80534 |
| Mcquay-Norris | FA4476 |
| Mercedes-Benz | 203 330 20 11, 203 330 34 11, 204 330 20 11, A203 330 2011, A203 330 3411, A204 330 2011 |
| Mevotech | CMK80534, MS10144 |
| N/A | 2043030379, GK80534, 623.35033 |
| Raybestos Chassis | 507-1352 |
| TRW | JTC971 |
| UNITY AUTOMOTIVE | CAB80533, 2C-CAB80533, SC-700050 |
| VAICO | V30-0772 |
DELPHI TC1282 Fits Vehicles
- Mercedes-Benz SLK300 (2009-2011)
- Mercedes-Benz CLK550 (2007-2009)
- Mercedes-Benz CLK63 AMG (2007-2009)
- Mercedes-Benz SLK280 (2006-2008)
- Mercedes-Benz CLK350 (2006-2009)
- Mercedes-Benz C350 (2006-2007)
- Mercedes-Benz C280 (2006-2007)
- Mercedes-Benz SLK350 (2005-2011)
- Mercedes-Benz SLK55 AMG (2005-2011)
- Mercedes-Benz C55 AMG (2005-2006)
- Mercedes-Benz CLK55 AMG (2003-2006)
- Mercedes-Benz CLK500 (2003-2006)
- Mercedes-Benz CLK320 (2002-2005)
- Mercedes-Benz C320 (2001-2005)
- Mercedes-Benz C32 AMG (2002-2004)
- Mercedes-Benz C240 (2001-2005)
- Mercedes-Benz C230 (2002-2007)
