(888) 312-8812 Login SignupDELPHI TC1279 Control Arm and Ball Joint Assembly
Tap to view 23 more
MSRP: $117.83
$9049
Save $27.34
Limited availability at this price!
In Stock
Get it by Tuesday, Mar 3
DELPHI TC1279 Part Description
Manufacturer
Product Description

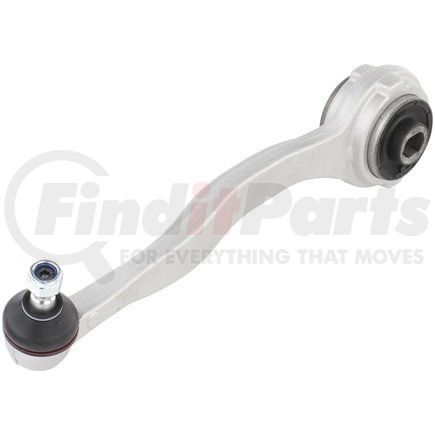

Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1279 Specifications
Product Attributes
| Position(s) | Front Left Lower Forward |
| Item Grade | Standard Replacement |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 4.370 IN |
| Control Arm Maximum Width | 111.00 MM |
| Control Arm Color | Gray |
| Ball Joint Stud Length | 2.953 IN |
| Ball Joint Stud Length | 75.00 MM |
| Control Arm Maximum Length | 16.457 IN |
| Control Arm Maximum Length | 418.00 MM |
| Mounting Hole Diameter | 0.638 IN |
| Mounting Hole Diameter | 16.20 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604251584 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC1279 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-6262, 102-6262 |
| CORTECO | 49398470, 49398612 |
| DORMAN | CB28263, CB28263PR, CB28187PR, CB28187 |
| Deeza | MB-H110 |
| Dorman | 520-953, 526-803 |
| MAS Industries | CB28263 |
| MEVOTECH | CMS101071 |
| MEYLE | 0160500090/HD, 0160500091/HD, 0160500031/HD, 0160500101, 0160500092HD, 0160500094/HD |
| MOOG | RK620086 |
| MOOG Chassis Products | CK620086, RK620086 |
| Mercedes-Benz | 203 330 01 11, 203 330 1611, 203 330 3511, 203 330 3911, 204 330 1811, 204 330 3311, 204 330 43 11, 204 330 57 11, 230 330 3911, A203 330 0111, A203 330 1611, A203 330 3511, A203 330 3911, A204 330 1811, A204 330 3311, A204 330 4311, A204 330 5711, A230 330 3911 |
| Mevotech | CMS10130, MS10130 |
| N/A | CMS101071, CB28263PR, GS10130, 623.35005 |
| TRW | JTC968 |
| UNITY AUTOMOTIVE | SC-700049, CAB620086, 2C-CAB620086 |
| VAICO | V30 0769, V30 0770 |
DELPHI TC1279 Fits Vehicles
- Mercedes-Benz E400 (2015-2017)
- Mercedes-Benz SLK250 (2012-2015)
- Mercedes-Benz E550 (2012-2016)
- Mercedes-Benz C250 (2010-2015)
- Mercedes-Benz SLK300 (2009-2011, 2016)
- Mercedes-Benz C63 AMG (2008-2015)
- Mercedes-Benz C300 (2008-2011)
- Mercedes-Benz CLK550 (2007-2009)
- Mercedes-Benz CLK63 AMG (2007-2009)
- Mercedes-Benz CLK350 (2006-2009)
- Mercedes-Benz C350 (2006-2015)
- Mercedes-Benz SLK55 AMG (2005-2011)
- Mercedes-Benz SLK350 (2005-2016)
- Mercedes-Benz C55 AMG (2005-2006)
- Mercedes-Benz CLK55 AMG (2003-2006)
- Mercedes-Benz CLK500 (2003-2006)
- Mercedes-Benz CLK320 (2002-2005)
- Mercedes-Benz C32 AMG (2002-2004)
- Mercedes-Benz C320 (2001-2005)
- Mercedes-Benz C240 (2001-2005)
- Mercedes-Benz C230 (2002-2009)
