DELPHI TC1078 Part Description
Manufacturer
Product Description

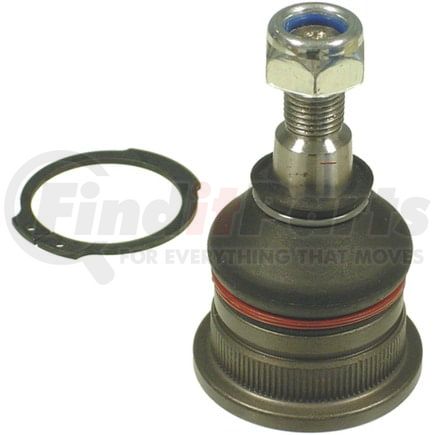

Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1078 Specifications
Product Attributes
| Position(s) | Front Lower, Rear Lower. For the position specific to your vehicle, refer to the Applications. |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 1.854 IN |
| Maximum Outside Diameter | 47.10 MM |
| Color | Silver |
| Stud Thread Diameter | 0.472 IN |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 47.1 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 3.346 IN |
| Height | 85.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.866 IN |
| Stud Thread Length | 22 MM |
| Wrench Size | 19mm |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.673 IN |
| Stud Tapered End 2 Diameter | 17.1 MM |
| Stud Tapered End 1 Diameter | 0.591 IN |
| Stud Tapered End 1 Diameter | 15 MM |
| Stud Thread Pitch | 1.25 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604250624 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC1078 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-4113 |
| DORMAN | 532-734, BJ60535 |
| Dorman | BJ60535XL |
| Hyundai | 54503-31600, 54520-11011, 54520-31600, 54530-31600 |
| Import Direct | BJ06007 |
| Kia | 54530-31600 |
| MAS Industries | BJ60025, BJ60025XL, BJ60535 |
| MOOG | K9617, K500031 |
| MOOG Chassis Products | K500031 |
| Mevotech | MK500031, MK9455 |
| N/A | 54503-38A00, 54530-3X000, 54530-2F000, K9455, GK500031, GS76719, 101-7342, K500236, 611.51016, MS90515, MK90691 |
| QUICK STEER | K9617 |
| TRW | JBJ154 |
DELPHI TC1078 Fits Vehicles
- Hyundai XG350 (2002-2005)
- Hyundai XG300 (2001)
- Hyundai Sonata (1989-1994, 1999-2005)
- Kia Spectra5 (2005-2009)
- Kia Spectra (2004-2009)
- Hyundai Elantra (1996-2006)
- Hyundai Tiburon (1997-2001, 2003-2008)
