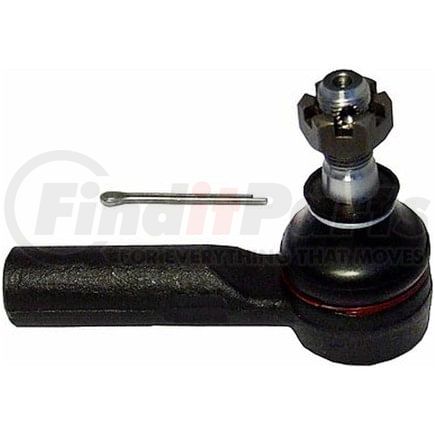

(888) 312-8812 Login SignupDELPHI TA2078 Tie Rod End
MSRP: $24.95
$1949
Save $5.46
Limited availability at this price!
In Stock
Get it by Thursday, Feb 12
DELPHI TA2078 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA2078 Specifications
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Color | Gray |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 38 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.591 IN |
| End 2 Thread Diameter | 15.00 MM |
| Height | 79.00 MM |
| Housing Material | Steel |
| Tube Diameter | 0.866 IN |
| Tube Diameter | 22.00 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 0.89 lb |
| Cone Outside Diameter | 15.25 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 3.189 IN |
| Length - Stud Center to End | 81.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.472 IN |
| End 1 Thread Diameter | 12.00 MM |
| Shank Length | 15.25 MM |
| Stud Length | 15.25 MM |
| Grade Type | Standard Replacement |
| Grade | Premium |
| Shank Length | 0.600 IN |
| Stud Length | 0.600 IN |
| Cone Outside Diameter | 0.600 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| UPC | 00689604247167 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA2078 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-4291, 101-5432 |
| CORTECO | 49401767 |
| DORMAN | T3306, T3306XL, 534-543 |
| Import Direct | ER02005 |
| MAS Industries | T3306, 534-543 |
| MOOG | ES3306 |
| MOOG Chassis Products | ES3306 |
| Mevotech | MES3306 |
| N/A | 45046-09190, 45046-59115, MES3713, TO74035, 534-543, GES3306, GES3713, TO71025, ES3713, 612.44119 |
| TRW | JTE683, JTE1404 |
| Toyota | 45046-09020, 45046-29255 |
DELPHI TA2078 Fits Vehicles
- Toyota Prius C (2012-2020)
- Toyota Yaris (2012-2016)
- Scion xD (2008-2014)
- Toyota Solara (1999-2003)
- Toyota Sienna (1998-2003)
- Toyota Camry (1992-2001)
- Toyota Avalon (1995-2004)
- Lexus RX300 (1999-2003)
- Lexus ES300 (1992-2001)
