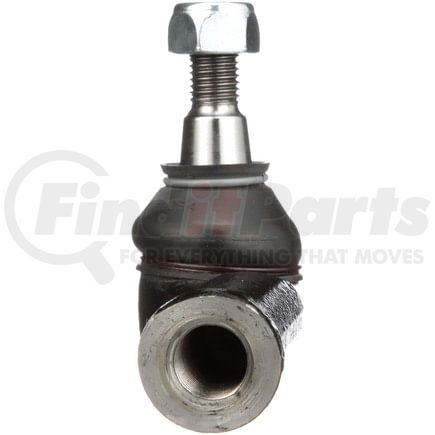

(888) 312-8812 Login SignupDELPHI TA1640 Tie Rod End
MSRP: $16.58
$1399
Save $2.59
Limited availability at this price!
In Stock
Get it by Tuesday, Mar 10
DELPHI TA1640 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA1640 Specifications
Product Attributes
| Position(s) | Left Outer |
| Item Grade | Standard Replacement |
| Color | Black |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 38 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.630 IN |
| End 2 Thread Diameter | 16.00 MM |
| Height | 82.10 MM |
| Housing Material | Steel |
| Tube Diameter | 0.866 IN |
| Tube Diameter | 22.00 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.05 lb |
| Cone Outside Diameter | 18.20 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 3.543 IN |
| Length - Stud Center to End | 90.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.472 IN |
| End 1 Thread Diameter | 12.00 MM |
| Shank Length | 18.20 MM |
| Stud Length | 18.20 MM |
| Grade Type | Standard Replacement |
| Grade | Premium |
| Shank Length | 0.717 IN |
| Stud Length | 0.717 IN |
| Cone Outside Diameter | 0.717 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604245606 |
| VMRS Code | 015004020 |
| UNSPSC | 25174205 |
DELPHI TA1640 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-5982 |
| CORTECO | 49398673, 49399159 |
| DORMAN | TO43121, TO43121PR, TO43101 |
| Import Direct | ER03041 |
| MAS Industries | TO43121 |
| MEYLE | 1160208204/HD |
| MOOG Chassis Products | ES800271 |
| Mevotech | MES800271 |
| TRW | JTF211, JTE360 |
| VAICO | V10-7033-1 |
| Volkswagen | 701 419 811 C, 701 419 811 E |
DELPHI TA1640 Fits Vehicles
- Volkswagen EuroVan (1995-1997, 1999-2003)
