CENTRIC 320.40022 Part Description
Manufacturer
Product Description

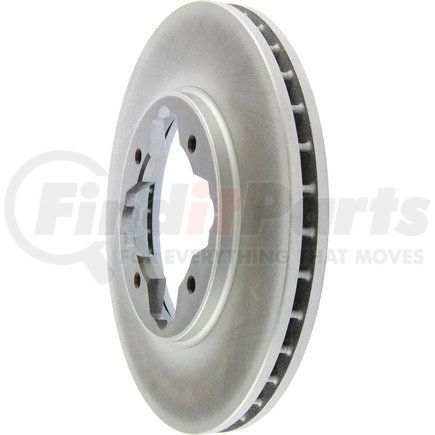

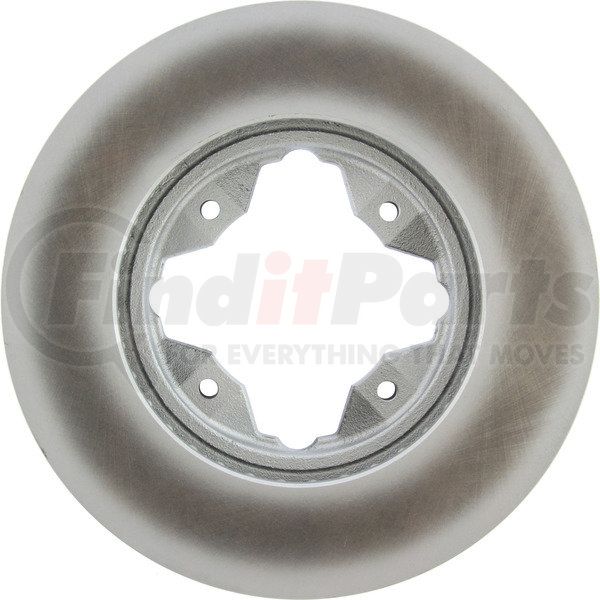

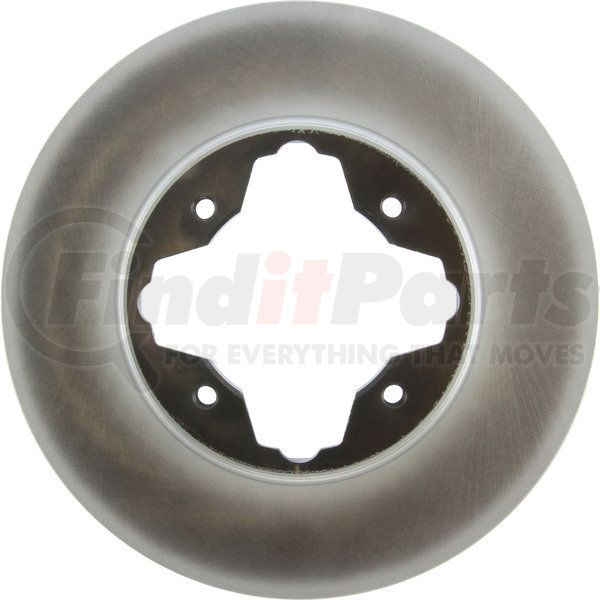

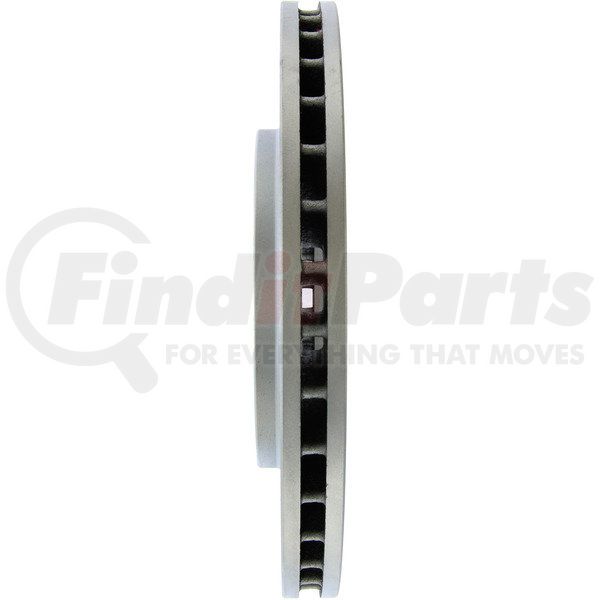

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.40022 Specifications
Product Attributes
| Disc Mounting [cntrc] | Behind the Hub |
| Weight [cntrc] Lbs | 11.150 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Kgs | 5.070 |
| Misc Holes [cntrc] | 0 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 0.827 IN |
| Discard Thickness | 21.000 MM |
| Nominal Thickness | 0.906 IN |
| Nominal Thickness | 23.000 MM |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 34.000 MM |
| Overall Height | 1.339 IN |
| Outside Diameter | 10.217 IN |
| Outside Diameter | 259.500 MM |
| Mounting Bolt Hole Quantity | 4 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 1.250 MM |
| Bearings Included | No |
| Center Hole Diameter | 92.000 MM |
| Center Hole Diameter | 3.622 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Mounting Bolt Hole Diameter | 10.000 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00889590250381 |
