(888) 312-8812 Login SignupRAYBESTOS 981957R Raybestos R-Line Brake Rotor
MSRP: $125.71
$11399
Save $11.72
Limited availability at this price!
In Stock
Get it by Wednesday, Mar 18
RAYBESTOS 981957R Part Description
Manufacturer
Product Description

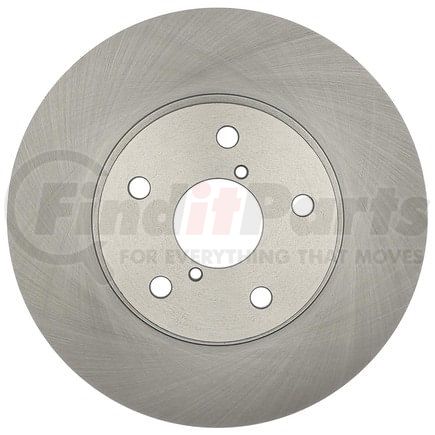

Raybestos R-Line Brake Rotor
Application Summary
2019-2015 Subaru Legacy Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 981957R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.283 IN |
| Center Hole Diameter | 58 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.024 IN |
| Discard Thickness | 26 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 6.929 IN |
| Inside Diameter | 176 MM |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.512 IN |
| Mounting Bolt Hole Diameter | 13 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28 MM |
| Outside Diameter | 11.555 IN |
| Outside Diameter | 293.5 MM |
| Overall Height | 2.232 IN |
| Overall Height | 56.7 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213192896 |
RAYBESTOS 981957R Cross References
| Brand | Part Number |
|---|---|
| AUTOXTRA | AX901362 |
| AUTOZONE | 75906, 79506, 79506DG |
| AutoZone | 79506DL |
| BRAKEBEST | 981957, 981957R |
| BrakeBest | 921769RGS |
| CENTRIC | 120.47034, 121.47034, 126.47034SL, 126.47034SR, 127.47034L, 127.47034R, 128.47034L, 128.47034R, 320.47034, 121.47036 |
| Centric Parts | 120.47034, 121.47034, 126.47034SL, 126.47034SR, 127.47034L, 127.47034R, 128.47034L, 128.47034R, 320.47034 |
| DURA CORP | BR901362 |
| DuraGo | BR901362, BR90136202 |
| Dynamic Friction Company | 600-13026, 604-13026 |
| MAGMA PRODUCTS | PMR523020 |
| NEWTEK AUTOMOTIVE | R1362, R1632 |
| Newtek Automotive USA | R1362, R1632 |
| POWERSTOP | JBR1717EVC |
| Qualis | 44881 |
| SUBARU | 26300AL000 |
| TopNotch | TN981957GEO |
| WORLDPAC | 1407-528604, 1427-566185 |
| Winhere | 6621769 |
RAYBESTOS 981957R Fits Vehicles
- Subaru Legacy (2015-2019)
RAYBESTOS 981957R Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 981957R Questions & Answers
No questions yet
Be the first to ask a question about this product!
