(888) 312-8812 Login SignupRAYBESTOS 981053R Raybestos R-Line Brake Rotor
MSRP: $98.60
$8949
Save $9.11
Limited availability at this price!
In Stock
Get it by Wednesday, Mar 18
RAYBESTOS 981053R Part Description
Manufacturer
Product Description

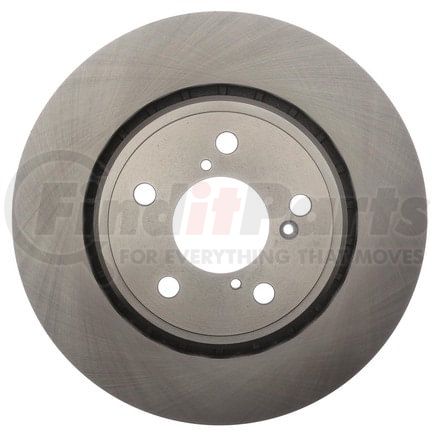

Raybestos R-Line Brake Rotor
Application Summary
2022-2016 Honda Pilot Front, 2023-2015 Honda Odyssey Front, 2020-2017 Acura MDX Front, 2023-2017 Honda Ridgeline Front, 2022-2019 Honda Passport Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 981053R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.76 IN |
| Center Hole Diameter | 70.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.024 IN |
| Discard Thickness | 26 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.327 IN |
| Inside Diameter | 211.5 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.72 IN |
| Mounting Bolt Hole Circle Diameter | 119.9 MM |
| Mounting Bolt Hole Diameter | 0.579 IN |
| Mounting Bolt Hole Diameter | 14.7 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28 MM |
| Outside Diameter | 12.595 IN |
| Outside Diameter | 319.9 MM |
| Overall Height | 1.85 IN |
| Overall Height | 47 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213190298 |
RAYBESTOS 981053R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH200963, YH200963C, YH200963P |
| AUTOPARTSOURCE | 471381 |
| AUTOXTRA | AX901366 |
| AUTOZONE | 74026 |
| Advance Auto Parts | YH524290C, YH524290HC, YH524290P |
| AutoZone | 74026DL |
| BRAKEBEST | 981053, 981053R |
| BrakeBest | 921776RGS |
| CENTRIC | 120.40092, 120.40092CRY, 121.40092, 126.40092CSL, 126.40092CSR, 126.40092SL, 126.40092SR, 127.40092L, 127.40092R, 128.40092CL, 128.40092CR, 128.40092L, 128.40092R, 320.40092 |
| Centric Parts | 120.40092, 120.40092CRY, 121.40092, 126.40092CSL, 126.40092CSR, 126.40092SL, 126.40092SR, 127.40092L, 127.40092R, 128.40092CL, 128.40092CR, 128.40092L, 128.40092R, 320.40092 |
| DURA CORP | BR901366 |
| DuraGo | BR90083202, BR901366, BR90136602, BR901366-02 |
| Dynamic Friction Company | 600-59058, 604-59058 |
| Eurorotor | HO-5060 |
| HONDA | 45251THRA00, 45251TK8A02 |
| MAGMA PRODUCTS | PMR265111 |
| NEWTEK AUTOMOTIVE | R1366 |
| Newtek Automotive USA | R1366 |
| POWERSTOP | JBR1590EVC |
| PROMAX | 14-610044 |
| Qualis | 45704 |
| TopNotch | TN981053GEO |
| UAP | R40092 |
| Ultra Brake | HO-5060 |
| WAGNER BRAKE | BD180658, BD180658E |
| WORLDPAC | 1407-524290, 1427-731748 |
| Winhere | 6621776 |
RAYBESTOS 981053R Fits Vehicles
- Honda Passport (2019-2025)
- Acura MDX (2017-2020)
- Honda Ridgeline (2017-2025)
- Honda Pilot (2016-2022)
- Honda Odyssey (2011-2025)
RAYBESTOS 981053R Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 981053R Questions & Answers
No questions yet
Be the first to ask a question about this product!
