RAYBESTOS 981050R Part Description
Manufacturer
Product Description

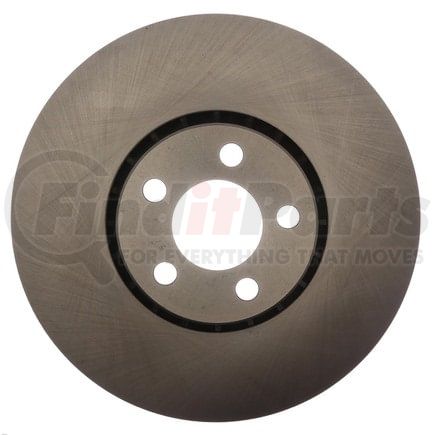

Raybestos R-Line Brake Rotor
Application Summary
2014-2003 Volvo XC90 Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 981050R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.063 IN |
| Discard Thickness | 27 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 7 IN |
| Inside Diameter | 177.8 MM |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Mounting Bolt Hole Circle Diameter | 108 MM |
| Mounting Bolt Hole Diameter | 0.661 IN |
| Mounting Bolt Hole Diameter | 16.8 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.181 IN |
| Nominal Thickness | 30 MM |
| Outside Diameter | 12.913 IN |
| Outside Diameter | 328 MM |
| Overall Height | 2.017 IN |
| Overall Height | 51.2 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213170603 |
RAYBESTOS 981050R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH290538, YH290538C |
| AUTOZONE | 45464, 45464DG |
| BOSCH | 52011561 |
| BRAKEBEST | 52011561, 981050, 981050FZN, 981050R |
| BrakeBest | 921296RGS |
| Brembo | 09.D725.11 |
| CENTRIC | 120.39048, 121.39048, 125.39048, 125.39048CRY, 126.39048SL, 126.39048SR, 127.39048L, 127.39048R, 128.39048CL, 128.39048CR, 128.39048L, 128.39048R, 320.39048C, 320.39048H |
| Centric Parts | 120.39048, 121.39048, 125.39048, 125.39048CRY, 126.39048SL, 126.39048SR, 127.39048L, 127.39048R, 128.39048CL, 128.39048CR, 128.39048L, 128.39048R, 320.39048C, 320.39048H |
| Dura Corp | BR900996, BR900996-01 |
| DuraGo | BR900996, BR900996-01 |
| Dynamic Friction Company | 600-27045 |
| MAGMA PRODUCTS | PMR605040 |
| POWERSTOP | EBR1285EVC |
| Qualis | 45464 |
| VOLVO | 31262489, 31400893, 314008930 |
| WAGNER BRAKE | BD180480 |
| WORLDPAC | 1407-290538, 1427-530049 |
| Winhere | 6621296 |
RAYBESTOS 981050R Fits Vehicles
- Volvo XC90 (2003-2014)
