(888) 312-8812 Login SignupRAYBESTOS 980659FZN Raybestos Element3 Coated Brake Rotor
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 980659FZN Part Description
Manufacturer
Product Description

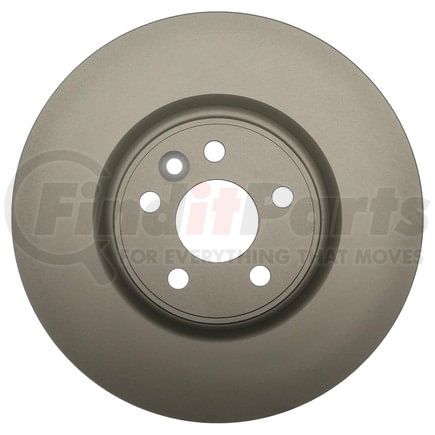

Raybestos Element3 Coated Brake Rotor
Application Summary
2018-2012 Volvo S60 Front, 2016-2008 Volvo XC70 Front, 2016-2007 Volvo S80 Front, 2018-2015 Volvo V60 Front, 2010-2008 Volvo V70 Front
Features & Benefits
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- RPT® Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 980659FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.504 IN |
| Center Hole Diameter | 63.6 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.02 IN |
| Discard Thickness | 25.9 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.25 IN |
| Mounting Bolt Hole Circle Diameter | 107.95 MM |
| Nominal Thickness | 1.1 IN |
| Nominal Thickness | 27.95 MM |
| Outside Diameter | 13.228 IN |
| Outside Diameter | 336 MM |
| Overall Height | 2.055 IN |
| Overall Height | 52.2 MM |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213146516 |
RAYBESTOS 980659FZN Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH200840, YH200840C, YH200840P |
| AUTOXTRA | AX900860 |
| AUTOZONE | 34757, 34757DG |
| BRAKEBEST | 980659, 980659FZN, 980659R, 980659RGS |
| BREMBO | 09.9586.11 |
| CENTRIC | 120.39044, 121.39044, 125.39044, 125.39044CRY, 126.39044CSL, 126.39044CSR, 126.39044SL, 126.39044SR, 127.39044L, 127.39044R, 128.39044L, 128.39044R |
| Centric Parts | 120.39044, 121.39044, 125.39044, 125.39044CRY, 126.39044CSL, 126.39044CSR, 126.39044SL, 126.39044SR, 127.39044L, 127.39044R, 128.39044L, 128.39044R |
| DURA CORP | BR34395, BR900854, BR900860 |
| DuraGo | 900860, BR900860, BR900854 |
| N/A | 120.39040 |
| NEWTEK AUTOMOTIVE | 34395 |
| Newtek Automotive USA | 34395 |
| POWERSTOP | EBR1002EVC |
| PROMAX | 14-34395 |
| QUALIS | 45460 |
| TRW | 4851 |
| UAP | 980659 |
| VOLVO | 30769057, 307690570, 31499996, 314999960 |
| WAGNER BRAKE | BD180069 |
| WINHERE | 6620728 |
| WORLDPAC | 1427-530138 |
RAYBESTOS 980659FZN Fits Vehicles
- Volvo V60 (2015-2018)
- Volvo S60 (2012-2018)
- Volvo V70 (2008-2010)
- Volvo XC70 (2008-2016)
- Volvo S80 (2007-2016)
