(888) 312-8812 Login SignupRAYBESTOS 980601FZN Raybestos Element3 Coated Brake Rotor
$10399
Limited availability at this price!
In Stock
Get it by Thursday, Mar 12
RAYBESTOS 980601FZN Part Description
Manufacturer
Product Description

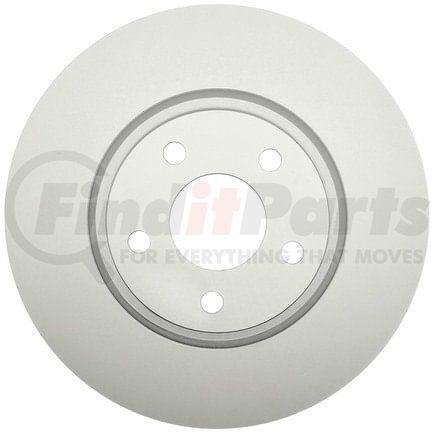

Raybestos Element3 Coated Brake Rotor
Application Summary
2019-2013 Ford Escape Front, 2017-2013 Ford C-Max Front, 2011-2004 Volvo S40 Front, 2012-2006 Volvo C70 Front, 2013-2007 Volvo C30 Front, 2011-2005 Volvo V50 Front
Features & Benefits
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- RPT® Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 980601FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.504 IN |
| Center Hole Diameter | 63.6 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.91 IN |
| Discard Thickness | 23.1 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.25 IN |
| Mounting Bolt Hole Circle Diameter | 107.95 MM |
| Mounting Bolt Hole Diameter | 0.54 IN |
| Mounting Bolt Hole Diameter | 13.7 MM |
| Nominal Thickness | 0.98 IN |
| Nominal Thickness | 24.9 MM |
| Outside Diameter | 11.811 IN |
| Outside Diameter | 300 MM |
| Overall Height | 1.917 IN |
| Overall Height | 48.7 MM |
| Salability Restrictions | No |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| Canadian Harmonizing Tariff Code | 8708309990 |
| UPC | 00887213146424 |
RAYBESTOS 980601FZN Cross References
RAYBESTOS 980601FZN Fits Vehicles
- Volvo C30 (2007-2013)
- Volvo C70 (2006-2013)
- Volvo V50 (2005-2011)
- Volvo S40 (2004-2012)
- Ford C-Max (2013-2017)
- Ford Escape (2013-2019)
