(888) 312-8812 Login SignupRAYBESTOS 980455FZN Raybestos Element3 Coated Brake Rotor
$8549
Limited availability at this price!
1 Day Lead Time
Get it by Wednesday, Mar 18
RAYBESTOS 980455FZN Part Description
Manufacturer
Product Description

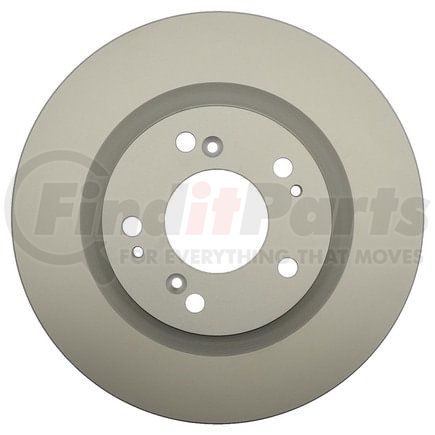

Raybestos Element3 Coated Brake Rotor
Application Summary
2012-2006 Mitsubishi Eclipse Front, 2009-2006 Mitsubishi Galant Front
Features & Benefits
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- RPT® Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 980455FZN Specifications
Product Attributes
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.961 IN |
| Discard Thickness | 24.4 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.495 IN |
| Mounting Bolt Hole Diameter | 12.55 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.024 IN |
| Nominal Thickness | 26 MM |
| Outside Diameter | 11.579 IN |
| Outside Diameter | 294.1 MM |
| Overall Height | 1.79 IN |
| Overall Height | 45.45 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213146080 |
RAYBESTOS 980455FZN Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH145526 |
| AUTOXTRA | AX31346 |
| Autoxtra | AX31346P |
| BOSCH | 38011013, 38011030 |
| BRAKEBEST | 38011013, 38011030, 980455, 980455FZN, 980455R, 980455RGS |
| Casting Numbers | 326345 |
| DURA CORP | BR31448 |
| MITSUBISHI | 4615A055, 4615A067, 4615A068 |
| NEWTEK AUTOMOTIVE | 31448 |
| Newtek Automotive USA | 31448 |
| PROMAX | 14-31448 |
| Parts Master | 126335 |
| UAP | 31448 |
| Ultra Brake | MI-366 |
| WINHERE | 6620684 |
| WORLDPAC | 1407-75689 |
| Wagner Brake | BD126335E |
RAYBESTOS 980455FZN Fits Vehicles
- Mitsubishi Galant (2006-2009)
- Mitsubishi Eclipse (2006-2012)
