RAYBESTOS 980397FZN Part Description
Manufacturer
Product Description

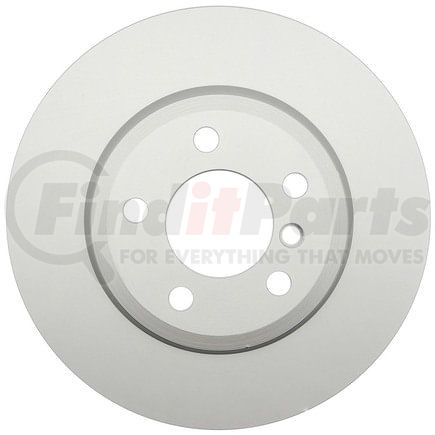

Raybestos Element3 Coated Brake Rotor
Application Summary
2010-2004 BMW X3 Front
Features & Benefits
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- RPT® Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 980397FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.953 IN |
| Center Hole Diameter | 75 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.921 IN |
| Discard Thickness | 23.4 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Mounting Bolt Hole Circle Diameter | 120 MM |
| Mounting Bolt Hole Diameter | 0.654 IN |
| Mounting Bolt Hole Diameter | 16.6 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.984 IN |
| Nominal Thickness | 25 MM |
| Outside Diameter | 12.795 IN |
| Outside Diameter | 325 MM |
| Overall Height | 2.449 IN |
| Overall Height | 62.2 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213145984 |
RAYBESTOS 980397FZN Cross References
RAYBESTOS 980397FZN Fits Vehicles
- BMW X3 (2004-2010)
