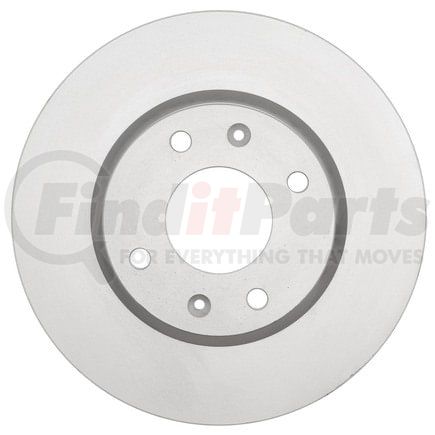

(888) 312-8812 Login SignupRAYBESTOS 980323FZN Raybestos Element3 Coated Brake Rotor
$11949
Limited availability at this price!
In Stock
Get it by Monday, Mar 16
RAYBESTOS 980323FZN Part Description
Manufacturer
Product Description
Raybestos Element3 Coated Brake Rotor
Application Summary
2005-2004 Hyundai Sonata Front, 2006-2002 Kia Optima Front, 2006-2002 Kia Magentis Front
Features & Benefits
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- RPT® Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 980323FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.72 IN |
| Center Hole Diameter | 69.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.961 IN |
| Discard Thickness | 24.4 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.495 IN |
| Mounting Bolt Hole Diameter | 12.55 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 1.025 IN |
| Nominal Thickness | 26.05 MM |
| Outside Diameter | 11.025 IN |
| Outside Diameter | 280.05 MM |
| Overall Height | 1.87 IN |
| Overall Height | 47.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213092479 |
RAYBESTOS 980323FZN Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH145581, YH145581C, YH145581P |
| ADVICS | R6F305U |
| AUTOXTRA | AX31384 |
| AUTOZONE | 31384, 31384DG |
| BENDIX | 145581 |
| BOSCH | 28010831 |
| BRAKEBEST | 28010831, 980323, 980323FZN, 980323R, 980323RGS, BD126139 |
| BREMBO | 25902 |
| CENTRIC | 120.50010, 120.50010CRY, 121.50010, 126.50010SL, 126.50010SR, 127.50010L, 127.50010R, 320.50010, 321.50010, 120.5001 |
| Casting Numbers | 211447-C, 326259 |
| Centric Parts | 120.50010, 120.50010CRY, 121.50010, 126.50010SL, 126.50010SR, 127.50010L, 127.50010R, 320.50010, 321.50010 |
| DURA CORP | BR31384 |
| DuraGo | BR31384 |
| Hyundai | 517123D300 |
| KIA | 517123C100 |
| MIGHTY DISTRIBUTING SYSTEM | 31384 |
| NEWTEK AUTOMOTIVE | 31384 |
| Newtek Automotive USA | 31384 |
| PROMAX | 14-31384 |
| QUALITY BRAND | Q615 |
| Qualis | 31384 |
| TRW | 4710 |
| UAP | 31384 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51673 |
| WABCO | PS126139 |
| WABCO - Archived | PS126139 |
| WAGNER BRAKE | BD126139 |
| WINHERE | 662871 |
| WORLDPAC | 1407-78265 |
| Wagner Brake | BD126139E |
RAYBESTOS 980323FZN Fits Vehicles
- Kia Magentis (2002-2006)
- Hyundai Sonata (2004-2005)
- Kia Optima (2002-2006)
