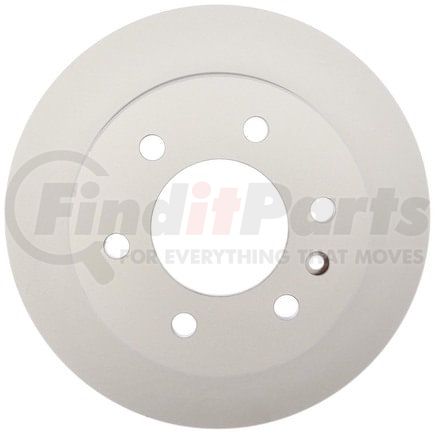

(888) 312-8812 Login SignupRAYBESTOS 780613FZN Raybestos Element3 Coated Brake Rotor
$13999
Limited availability at this price!
In Stock
Get it by Thursday, Mar 12
RAYBESTOS 780613FZN Part Description
Manufacturer
Product Description
Raybestos Element3 Coated Brake Rotor
Application Summary
2018-2010 Mercedes-Benz Sprinter 2500 Rear, 2018-2010 Mercedes-Benz Sprinter 3500 Rear, 2009-2007 Dodge Sprinter 2500 Rear, 2018-2007 Freightliner Sprinter 2500 Rear, 2018-2007 Freightliner Sprinter 3500 Rear
Features & Benefits
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- RPT® Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 780613FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.347 IN |
| Center Hole Diameter | 85 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.551 IN |
| Discard Thickness | 14 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 5.118 IN |
| Mounting Bolt Hole Circle Diameter | 130 MM |
| Mounting Bolt Hole Diameter | 0.602 IN |
| Mounting Bolt Hole Diameter | 15.3 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 0.63 IN |
| Nominal Thickness | 16 MM |
| Outside Diameter | 11.732 IN |
| Outside Diameter | 298 MM |
| Overall Height | 2.801 IN |
| Overall Height | 71.15 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213145205 |
RAYBESTOS 780613FZN Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH200456, YH200456C, YH200456P |
| AUTOPARTSOURCE | 491325 |
| AUTOXTRA | AX900332 |
| AUTOZONE | 43164, 43164DG |
| BOSCH | 16011498, 16011500 |
| BRAKEBEST | 16011498, 780613, 780613FZN, 780613R, 780613RGS |
| BREMBO | 08.9509.10 |
| Brembo | 08.9509.11 |
| CENTRIC | 120.35107, 121.35107, 125.35107, 126.35107CSL, 126.35107CSR, 126.35107SL, 126.35107SR, 127.35107L, 127.35107R, 320.35107, 320.35107H, 321.35107 |
| CHRYSLER | 68013764AA |
| Centric Parts | 121.35107, 125.35107, 126.35107CSL, 126.35107CSR, 126.35107SL, 126.35107SR, 127.35107L, 127.35107R, 320.35107, 320.35107H, 120.35107, 321.35107 |
| DURA CORP | BR53048, BR900332 |
| DuraGo | 60379, 900332, BR60379, BR900332, BR900332-02 |
| MERCEDES-BENZ | 9064230012 |
| NAPA BRAKES | SDK6023 |
| NEWTEK AUTOMOTIVE | 53048 |
| Newtek Automotive USA | 53048 |
| PAGID | 355123172 |
| PAGID Racing | 355123172 |
| POWERSTOP | EBR1038EVC |
| PROMAX | 14-53048 |
| Qualis | 43164 |
| TRW | 4823 |
| TopNotch | TN780613GEO |
| UAP | 53048 |
| Ultra Brake | ME-205 |
| WABCO | PS126504 |
| WABCO - Archived | PS126504 |
| WAGNER BRAKE | BD126504 |
| WINHERE | 661687 |
| WORLDPAC | 1407-75747 |
| Wagner Brake | BD126504E |
RAYBESTOS 780613FZN Fits Vehicles
- Freightliner Sprinter 3500 (2007-2018)
- Freightliner Sprinter 2500 (2007-2018)
- Volkswagen Crafter Van (2008-2017)
- Mercedes-Benz Sprinter 3500 (2010-2018)
- Dodge Sprinter 3500 (2007-2009)
- Mercedes-Benz Sprinter 2500 (2010-2018)
- Dodge Sprinter 2500 (2007-2009)
