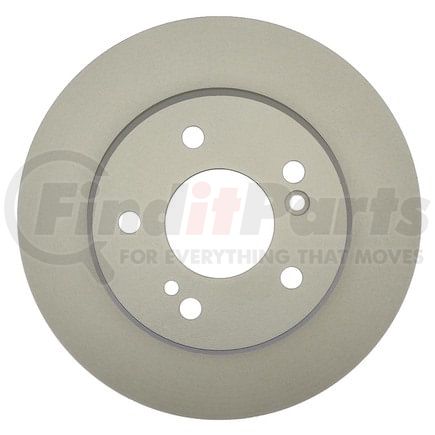

(888) 312-8812 Login SignupRAYBESTOS 96764FZN Raybestos Element3 Coated Brake Rotor
MSRP: $56.08
$4349
Save $12.59
Limited availability at this price!
In Stock
Get it by Thursday, Mar 19
RAYBESTOS 96764FZN Part Description
Manufacturer
Product Description
Raybestos Element3 Coated Brake Rotor
Application Summary
2007-2002,2000 Mercedes-Benz C230 Rear, 2005-2001 Mercedes-Benz C240 Rear, 2008-2004 Chrysler Crossfire Rear, 2004-1998 Mercedes-Benz SLK230 Rear, 2004-2001 Mercedes-Benz SLK320 Rear, 2008-2006 Mercedes-Benz SLK280 Rear
Features & Benefits
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology for long lasting rust prevention.
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 96764FZN Specifications
Product Attributes
| Center Hole Diameter | 2.638 IN |
| Center Hole Diameter | 67 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.287 IN |
| Discard Thickness | 7.3 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 0.507 IN |
| Mounting Bolt Hole Diameter | 12.9 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.355 IN |
| Nominal Thickness | 9 MM |
| Outside Diameter | 10.94 IN |
| Outside Diameter | 277.9 MM |
| Overall Height | 2.19 IN |
| Overall Height | 55.65 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213145441 |
RAYBESTOS 96764FZN Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | 145459, YH145459, YH145459C |
| ALTROM IMPORTS | 2104230412 |
| AUTOZONE | 34111, 34111DG |
| BENDIX | 145459 |
| BRAKEBEST | 16010203, 36010933, 96764, 96764FZN, 96764R, 96764RGS, BD125616 |
| BREMBO | 08.5178.30, 25132, 25924 |
| CALIFORNIA DRUM & ROTOR | 125616 |
| CENTRIC | 120.35012, 320.35012 |
| CHRYSLER | 05098065AA, 05098066AA, 5098065AA, 5098066AA |
| CONTINENTAL-CONTITECH | CW09114 |
| Casting Numbers | 210878-C, 325895 |
| Centric Parts | 120.35012 |
| DURA CORP | BR34111, BR3411102 |
| EUROROTOR | ME173 |
| GREN | 432801 |
| MERCEDES-BENZ | 2034230112, 2104230412, 2104230912 |
| MIGHTY DISTRIBUTING SYSTEM | 34111 |
| MONROE BRAKES | BD125616 |
| NEWTEK AUTOMOTIVE | 34111 |
| Newtek Automotive USA | 34111 |
| PAGID | 355101012 |
| PAGID Racing | 355101012 |
| POWERSTOP | EBR859EVC |
| PROMAX | 14-34111 |
| QUALIS | 34111 |
| QUALITY BRAND | 34111, Q169 |
| STANDARD ROTORS AND DRUMS | 34111 |
| THE UNIVERSAL GROUP | 110383 |
| TRW | 2757 |
| UAP | 34111 |
| Ultra Brake | ME-193 |
| Universal | 110383 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51336 |
| WABCO | PS125616 |
| WABCO - Archived | PS125616 |
| WAGNER BRAKE | BD125616, BD126149 |
| WINHERE | 661190, YH1190 |
| WORLDPAC | 1407-78123, 1427-542028 |
| Wagner Brake | BD125616E |
RAYBESTOS 96764FZN Fits Vehicles
- Mercedes-Benz E320 (1995)
- Mercedes-Benz E300 (1996-1997)
- Mercedes-Benz SLK300 (2009-2011)
- Mercedes-Benz SLK280 (2006-2008)
- Chrysler Crossfire (2004-2008)
- Mercedes-Benz SLK320 (2001-2004)
- Mercedes-Benz SLK230 (1998-2004)
- Mercedes-Benz C280 (1996-2000)
- Mercedes-Benz C240 (2001-2005)
- Mercedes-Benz C230 (1999-2000, 2002-2007)
