TRUCK-LITE 60553R Part Description
Manufacturer
Product Description

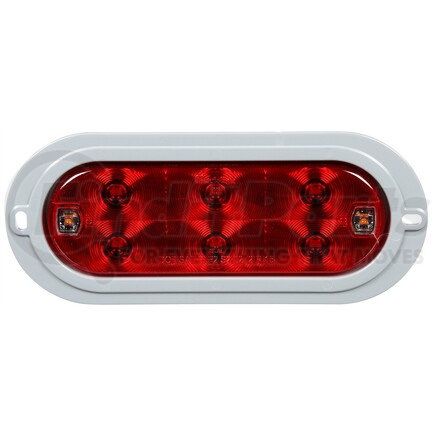

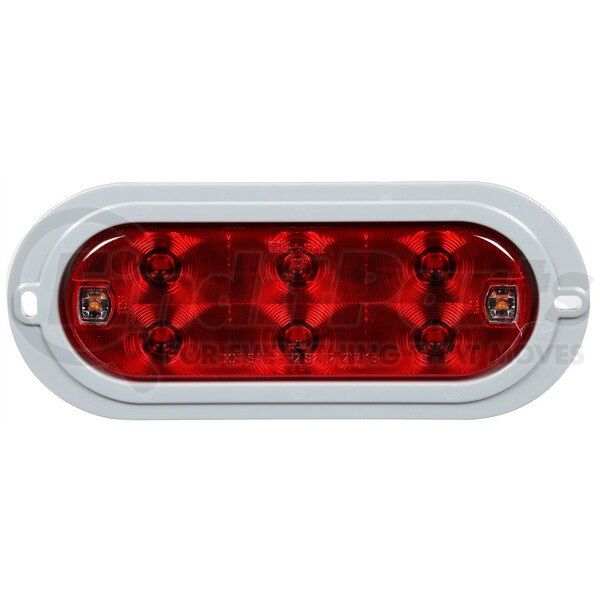

60 Series, LED, 2"x6", Oval, 8 Diode, Stop/Turn/Tail & Back-Up Light
Features & Benefits
- Offers the same safety and low maintenance benefits of existing LED S/T/T and BU lights now in one package
- Not orientation dependent; complies with FMVSS 108 vertically or horizontally
- Not orientation dependent
- Save space in inventory
- complies with FMVSS 108 vertically or horizontally
- Lower cost system
- The new combination lamps are the same size as existing Truck-Lite Model 60 lights, which means they fit into existing mounting holes
- Limited lifetime warranty
TRUCK-LITE 60553R Specifications
Product Attributes
| Voltage | 12 |
| Bulb Technology | LED |
| Common Size | 2"x6" |
| Housing Material | Polycarbonate |
| Lamp Connection | Fit 'N Forget 4 Pin S.S. |
| Lens Color | Red;Clear |
| Standards Met | I6;P2;T;R;S2 |
| Trim Color | Gray |
| Mount Type | Flush Mount |
| Total Height In INH | 3.31 |
| Total Width In INH | 7.85 |
| Total Depth In INH | 1.34 |
| Total Depth In MMT | 34.07 |
| Total Width In MMT | 199.48 |
| Weight In LB | 0.34 |
| Series | 60 Series |
| Total Height In MMT | 84.1 |
| Taxonomy | Lights.Stop/Turn/Tail Lights |
| Mount/Trim Color | Gray |
| Mount/Trim Material | Polycarbonate |
| Plug Side One | No Plug |
| Compliance Family | FMVSS 108;CMVSS 108;DOT;SAE |
| Voltage (VLT) | 12 |
| Lighting Technology | LED |
| Lens Shape | Oval |
| Lens Material | Polycarbonate |
| Sealed/bulb Replaceable | Sealed |
| Lens Height_INH | 2.1 |
| Lens Width_INH | 6.32 |
| Number Of Diodes/bulbs | 8 |
| Current Minor | 0.02 |
| Product Group | Stop Lighting |
| Product Subgroup | Stop/Turn/Tail & Back-Up Light |
Additional Information
| Warranty Special | Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | US |
| UPC | 00735111197263 |
| VMRS Code | 034002013 |
| UNSPSC | 25172900 |
TRUCK-LITE 60553R Cross References
| Brand | Part Number |
|---|---|
| PETERSON LIGHTING | M881-7 |
TRUCK-LITE 60553R Customer Reviews
No reviews yet
Be the first to review this product!
TRUCK-LITE 60553R Manufacturer Information
Truck-Lite® is a world-renowned manufacturer of mirrors, heavy-duty forward and signal lighting, trailer harnesses, and other safety and visibility-enhancing products. Its main headquarters is located in Falconer, NY, and it maintains ten more facilities across North America and Europe. The company may have started small as a sealed lighting manufacturer in 1955. But it has grown tremendously over the years—in fact, it introduced a series of firsts including the first sealed lighting products, first LED S/T/T lamps, and first forward lighting. Being first in product development has sure paved the way for Truck-Lite to become a successful business today.
