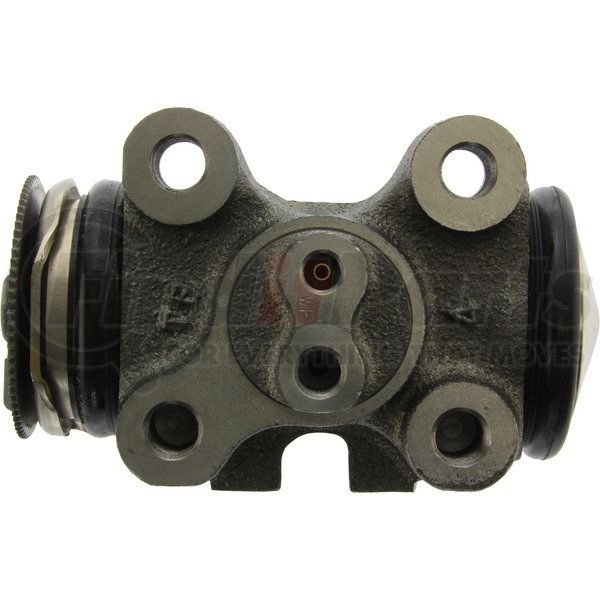

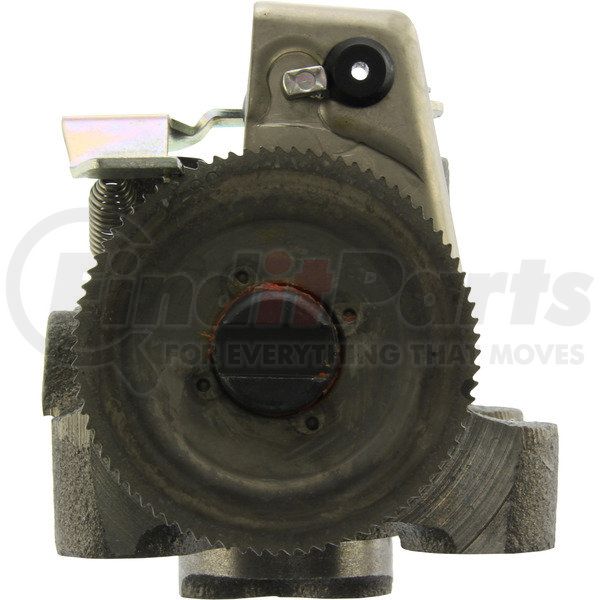

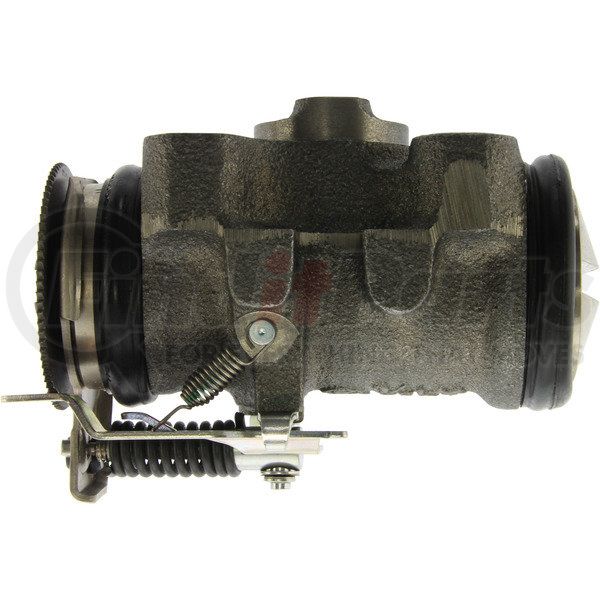

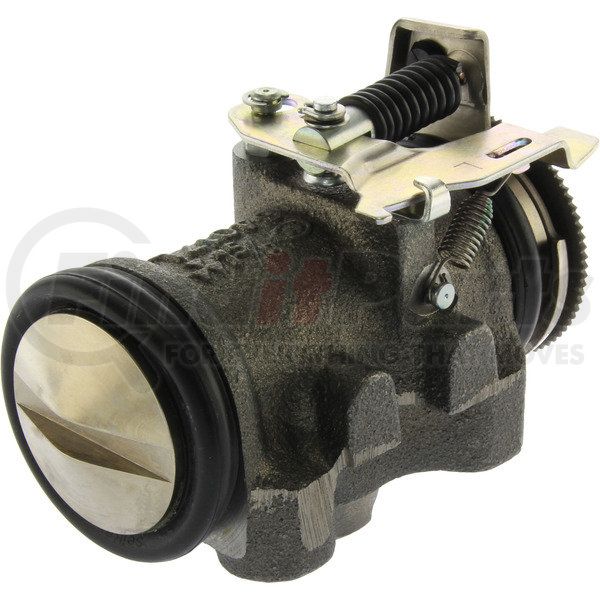

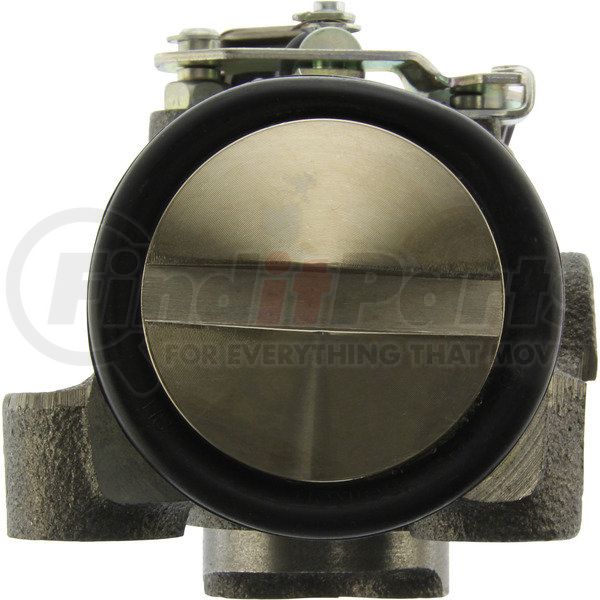

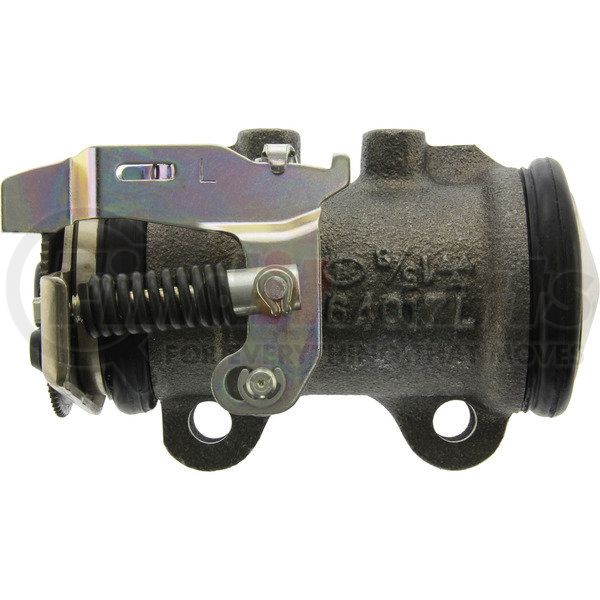

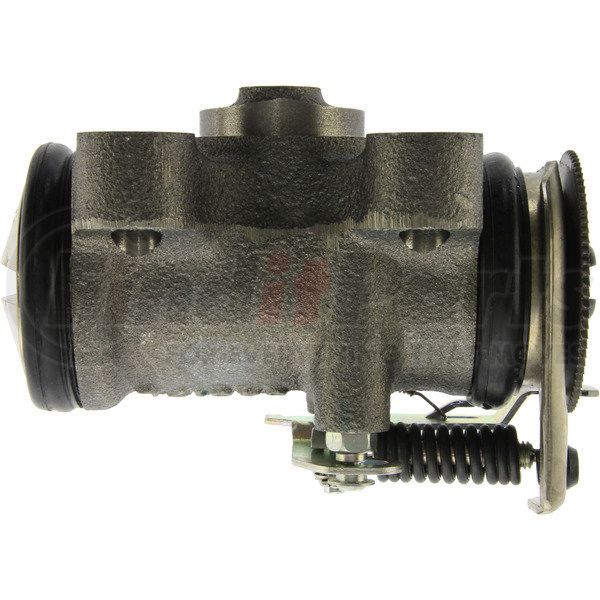

Need help? We're here!
(888) 312-8812 Login SignupCENTRIC 134.75033 Centric Premium Wheel Cylinder
Tap to view 6 more
$41749
Limited availability at this price!
5 Day Lead Time
Get it by Monday, Dec 22
CENTRIC 134.75033 Part Description
Manufacturer
Product Description
Centric Premium Wheel Cylinder
Features & Benefits
- OE style replacement. Highest quality. Includes brass inserts and aluminum castings where applicable
CENTRIC 134.75033 Specifications
Product Attributes
| Publication Bore [cntrc] | 1 5/8" |
| Product Grade [cntrc] | Premium |
| Port 2 Dia [cntrc] Mm | 12.000 |
| Port 2 Flare Type [cntrc] | Inverted Flare |
| Notes 1 [cntrc] | 1 Piston with Star Wheel & Adjuster Assembly |
| Weight [cntrc] Kgs | 4.050 |
| Port 2 Thrd Pitch [cntrc] Mm | 1.500 |
| Piston 2 Type [cntrc] | Slotted |
| Weight [cntrc] Lbs | 8.900 |
| Piston 1 Type [cntrc] | Slotted |
| Attachment Type | Bolted |
| Inlet Thread Diameter | 10.000 MM |
| Mounting Method | 2 Bolts |
| Mounting Hole Quantity | 2 |
| Bleeder Screw Included | Yes |
| Piston Quantity | 2 |
| Bore Diameter | 41.275 MM |
| Bore Diameter | 1.625 IN |
| 9190 | 1.000 MM |
| Flare Type | Inverted Flare |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8412210075 |
| UPC | 805890923329 |
CENTRIC 134.75033 Part Interchanges
| Brand | Part Number |
|---|---|
| N/A | E139-80-038, 64017, 64017L, E13980038, 475801502, 475801502A, 47580EV040, S475801502 |
CENTRIC 134.75033 Fits Vehicles
- Hino FF3018 (1995-1997)
- Hino FE2618 (1995-1997)
- Hino FF3020 (1995-2002, 2004)
- Hino FE2620 (1998-2004)
