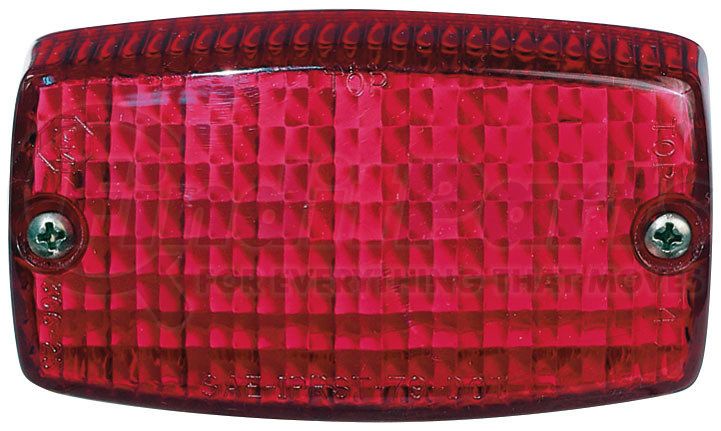

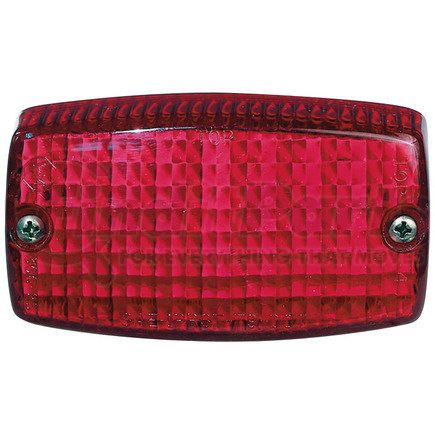

(888) 312-8812 Login SignupPETERSON LIGHTING 306R Incandescent Stop/Turn/Tail, Rectangular, Surface-Mount 4.56"X 2.5", red, poly bag
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
PETERSON LIGHTING 306R Part Description
Manufacturer
Product Description

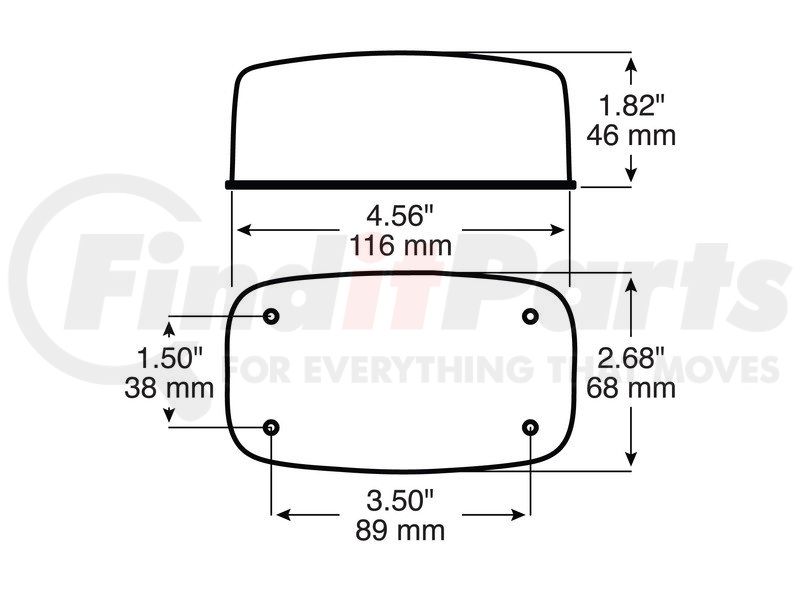

INCANDESCENT STOP/TURN/TAIL, RECTANGULAR, SURFACE-MOUNT 4.56"x 2.5"
Features & Benefits
- Assembled in USA.
- Available in retail-friendly Viz Pack.
- Features polycarbonate lens, galvanized steel base plate, dual-filament bulb, and tough plastic guard to protect lead wires.
- For use on vehicles under 80" wide; has less than 75 sq. cm of effective, projected luminous lens area.
- See matching 306A turn signal on page 15.
- Mounts on 3 1/2" centers and grounds through mounting screw.
- Rectangular, surface-mount light functions as rear S/T/T light.
- See matching 306A turn signal on Peterson Master Catalog page 49.
- See matching 393C back-up light on page 30.
- See matching 393C back-up light on Peterson Master Catalog page 100.
2057 12V replacement bulb - - Reference only -
PETERSON LIGHTING 306R Specifications
Product Attributes
| Bulb Technology | incandescent |
| Bulb/diode Count | 1 |
| California Prop65 Required | Y |
| Container Type | poly bag |
| Filament Quantity | 1 |
| Ground Type | mounting hardware |
| Height | 2.68 in |
| Integral Reflex | N |
| Length | 4.58 in |
| Lens Color | red |
| Light Color | red |
| Mounting Type | surface |
| Regulatory Compliance | DOT |
| Replaceable Bulb | Y |
| Shape | rectangular |
| Submersible | N |
| Termination | stripped wire |
| Voltage | 12 Volts |
| W/ License Light | N |
| Width | 1.82 in |
Additional Information
| Warranty Special | See full warranty terms: https://pmlights.com/warranty |
| Warranty Special UOM | TX |
| Warranty Time | 1 |
| Warranty Time UOM | YR |
| Country of Origin (Primary) | US |
| UPC | 00044464101460 |
| VMRS Code | 034002058 |
PETERSON LIGHTING 306R Cross References
PETERSON LIGHTING 306R Customer Reviews
No reviews yet
Be the first to review this product!
PETERSON LIGHTING 306R Manufacturer Information
Peterson Lighting® is a family-owned company that produces and distributes vehicle safety lighting systems mirrors, and other related safety products and accessories. It has been in the business for 75 years, and currently, it offers over 2,200 products designed for various applications, including tilt-bed and cargo vehicles and light- and medium-duty trailers. Peterson Lighting believes that full commitment to quality is its responsibility as a market leader. All its components are designed and manufactured only in its ISO 9001/QS-9000-certified facility in Grandview, MO. This facility is handled by knowledgeable and highly skilled specialists, who are as dedicated and passionate as the company when it comes to quality.
