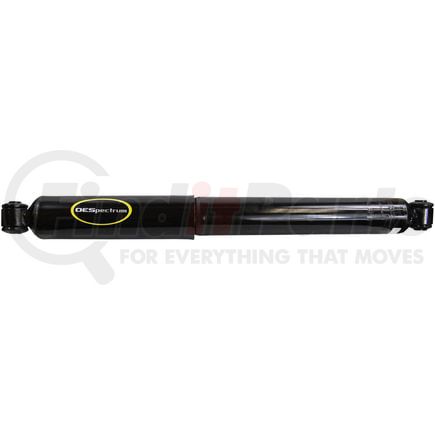

(888) 312-8812 Login SignupOESpectrum Suspension Shock Absorber
| Lower Mount Code | LS40 |
| Upper Mount Code | LS40 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 14.06 IN |
| Extended Length | 22.09 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.11/16" Sleeve OAL |
| Parts Pack(s) | None |
| Travel Length | 8.03 in |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.11/16" Sleeve OAL |
| Compressed Length | 357.1 MM |
| Extended Length | 561.1 MM |
| Travel Length | 204 MM |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS40 |
| Upper Mount Code | LS40 |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| MSDS Sheet Number | 01170 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708801910 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801300 |
| UPC | 00048598169013 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
| Brand | Part Number |
|---|---|
| Autopart International | 2701528002 |
| Chevrolet | 20990237, 22781767, 22781768, 22862537, 22862538, 22957955 |
| Duralast | TS3339502B |
| FCS | 342915 |
| FCS AUTO PARTS | 342915 |
| KYB | 345084 |
| KYB AMERICA LLC. | 345084 |
| MasterPro Shocks and Struts | GM171 |
| Monroe Shocks & Struts | 210333 |
| NAPA Shocks | 37359, NS37359 |
| OEM | 22957955 |
| PM Auto | PM6001202 |
| Sachs | 316887 |
| TRW | JGT5444S |
