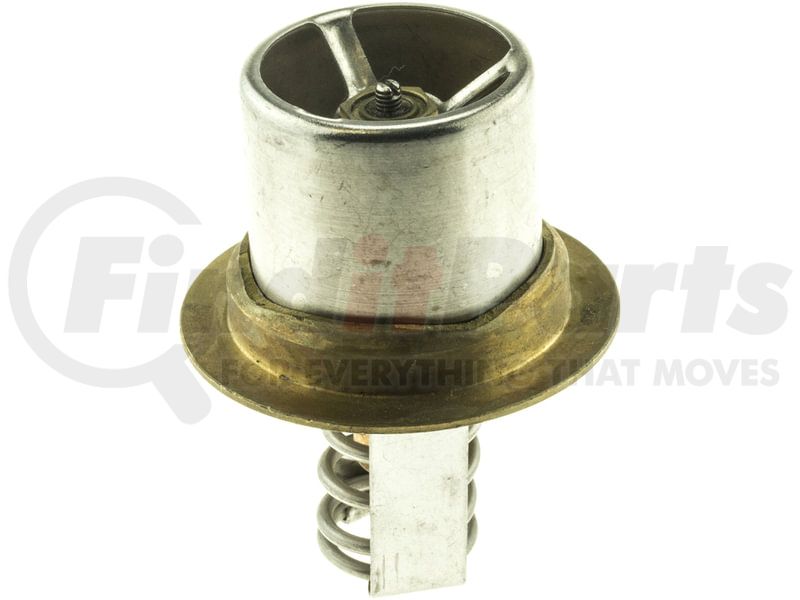

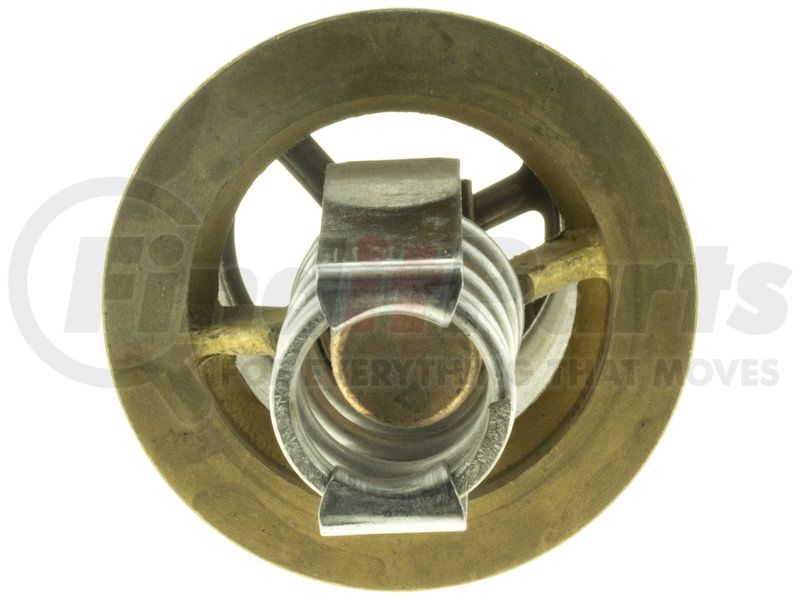

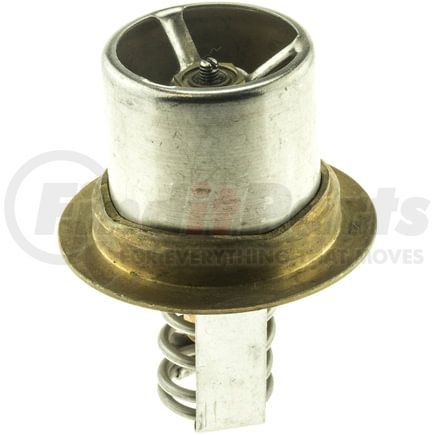

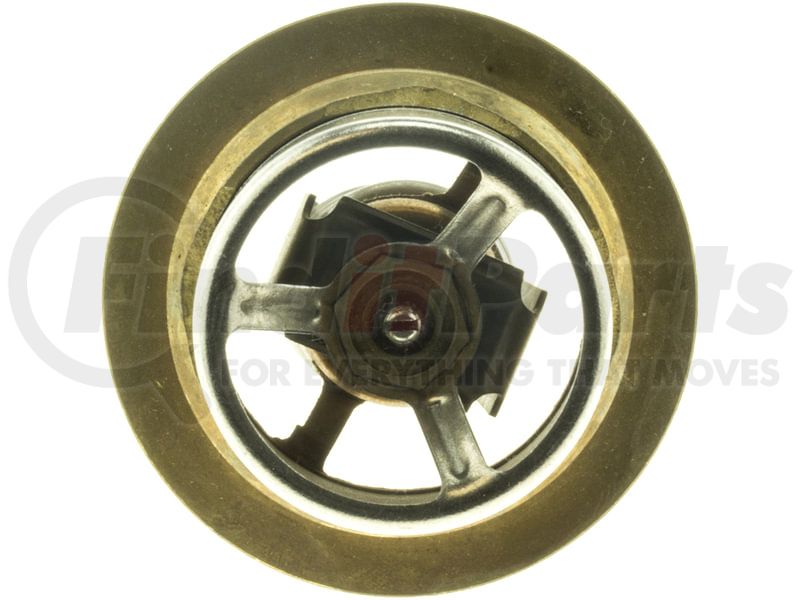

(888) 312-8812 Login SignupGATES 33166 Green Stripe Heavy-Duty Engine Coolant Thermostat
Tap to view 2 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES 33166 Part Description
Manufacturer
Product Description
Green Stripe Heavy-Duty Engine Coolant Thermostat
Application Summary
Case, 1150, Case A401BD Diesel, Thermostat
Features & Benefits
- Heavy-gauge brass and stainless steel construction for corrosion resistance
- Quality-controlled factory calibration assures accuracy of opening and closing, regardless of pressure changes
- Temperature sensitive heat motor provides consistent valve response for smooth performance and precise engine cooling
- Jiggle pins for air venting, seals and gaskets make these thermostats equivalent to the original equipment parts
GATES 33166 Specifications
Product Attributes
| Type | Heavy-Duty Thermostat |
| Start to Open Temperature | 160 FA |
| Design | Top By-Pass |
| Material | Steel, Brass, Copper |
| Height | 3.04 IN |
| Sealing Flange Outside Diameter | 2.46 IN |
| Flange Thickness | .05 in |
| Valve Outside Diameter | 1.61 IN |
| Flange Height | 1.4 IN |
| Height Between Flanges | 1.59 IN |
| Jiggle Pin Weep Hole | No |
| Jiggle Pin Check Valve Quantity | 0 |
| Gasket Quantity | 0 |
| Seal Quantity | 0 |
| Installation Tool Included | No |
| Start to Open Temperature | 71 CE |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8481809015 |
| Stock Status | N |
| UPC | 00770075623953 |
| VMRS Code | 042006000 |
| UNSPSC | 41112209 |
