GATES 24120 Part Description
Manufacturer
Product Description

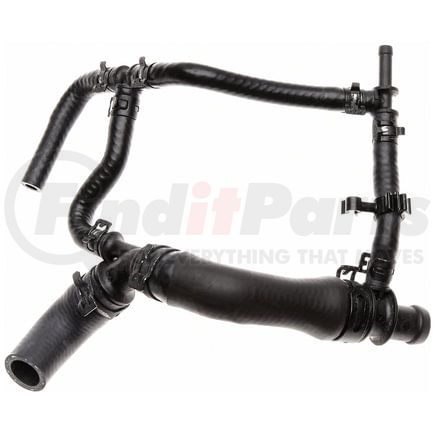

Premium Modular Coolant Hose
Application Summary
2002-1999 Volkswagen, Jetta, V-6 2.8 L, Throttle Body To Eng.
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation - the leading cause of hose failure
- Engineered to resist electrochemical degradation – the leading cause of hose failure
- EPDM tube; synthetic fiber knit reinforcement, heat-, ozone- and chemical coolant-resistant EPDM cover
- Manufactured with OEM-exact hose components (quick connects, branch connectors/tees, sensors, etc.)
- Meets SAE 20R3 EC Class D1 under 25mm (1 in.) ID, SAE 20R4 EC Class D1 for 25mm (1 in.) ID and over
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
GATES 24120 Specifications
Product Attributes
| Centerline Length | 11.25 IN |
| Modular | Yes |
| Modular Components Included | 4 Branches, 2 Outlets, 3 Flow Restrictors |
| Branch Quantity | 4 |
| Quick Connect Fitting Quantity | 0 |
| End 1 Inside Diameter | .2 in |
| End 2 Inside Diameter | .2 in |
| End 3 Inside Diameter | .31 in |
| End 4 Inside Diameter | .31 in |
| End 5 Inside Diameter | .54 IN |
| End 6 Inside Diameter | .76 IN |
| Contains Spring | No |
| Material | EPDM, Plastic |
| Molded | Yes |
| Centerline Length | 8 MM |
| End 1 Inside Diameter | 5 MM |
| End 2 Inside Diameter | 5 MM |
| End 4 Inside Diameter | 8 MM |
| End 5 Inside Diameter | 14 MM |
| End 6 Inside Diameter | 19 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| Country of Origin (Primary) | TR |
| Stock Status | S |
| UPC | 00770075573586 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
GATES 24120 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 20631S |
| Dayco | 86837 |
| Duralast | F11162 |
| NAPA Belts/Hose | 16776, 24120 |
| Rapro | R25314 |
| Rein | CHE0170P |
| Volkswagen | 1J0122157BL, 1J0122157CF, 1J0122157DH, 1J0122157DN |
GATES 24120 Fits Vehicles
- Volkswagen Jetta (1999-2002)
- Volkswagen Golf (2000-2002)
