(888) 312-8812 Login SignupSTANDARD IGNITION TBC566 Turbocharger - Remfd - Diesel
Tap to view 2 more
$1,42699
+$300.00 core deposit
Total price w/ core: $1,726.99
1 Day Lead Time
Get it by Thursday, Mar 12
STANDARD IGNITION TBC566 Part Description
Manufacturer
Product Description

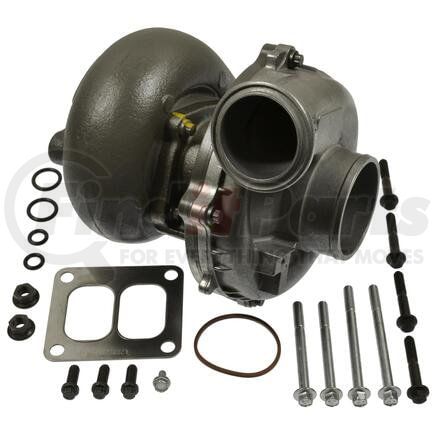

Turbocharger - Remfd - Diesel
Features & Benefits
- Each unit is carefully identified, and completely disassembled to is core assembly. All core assemblies are cleaned and inspected to ensure core quality guidelines are meet before reassembly begins therefore reducing failure rate
- Our reman turbos come with new rotating, journal and thrust bearings; seals are 100% replaced; and all mating surfaces/passages are reconditioned which provides a longer-lasting unit.
- Comes complete with necessary installation kit for ease of installation
- Our reman turbo's wheels, shafts and corresponding cores are checked against OE tolerance specification and either reconditioned or replaced as needed for trouble free operation.
STANDARD IGNITION TBC566 Specifications
Product Attributes
| Center Housing Cooling Type | Water |
| Contents | Turbocharger Installation Kit |
| Hardware Included | Yes |
| Hose Connector Quantity | 2 |
| New or Reman | Remanufactured |
| Notes | Includes O-Ring, Mounting Gasket, Mounting Bolts |
| Compressor Inlet Outside Diameter | 77.47 |
| Compressor Outlet Outside Diameter | 69.85 |
| Cooling Method | Water |
| Exhaust Brake Included | No |
| Exhaust Manifold Included | No |
| Exhaust Outlet Outside Diameter (m | 90.424 |
| Gaskets Included | Gaskets; Seals |
| Geometry Type | Fixed |
| Oil Supply Line Included | No |
| Sensor Included | No |
| Speed Sensor Included | No |
| Temperature Sensor Included | No |
| Wastegate Actuator Included | No |
| Mounting Hardware Included | Yes |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8414800500 |
| Warranty Distance | 36000 |
| Warranty Distance UOM | MI |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| UPC | 00727943610379 |
STANDARD IGNITION TBC566 Cross References
| Brand | Part Number |
|---|---|
| BWD | 287101 |
| Cardone Reman | 2N-208, 2T-208 |
| Echlin | 2-551004, TRB205R |
| Ford | F4TZ6K682BRM, F4TZ6VK682CARM, F6TZ6K682ARM |
| Garrett | 466163-5014, 466163-9014, 468485-9004 |
| MAHLE | 014 TC 26158 000, 014TC2400710, 014TC2615800, 144TC2400710, 144TC24007100, 144TC2400800, 144TC2401000 |
| Motorcraft | 6VK682, TC4-RM |
| N/A | 1820612C91, T2005, A1380113N |
| OE-TurboPower | D1001 |
| Rotomaster | A8380101R |
| Sorensen | 850-1066 |
STANDARD IGNITION TBC566 Fits Vehicles
- Ford F-59 Commercial Stripped Chassis (1994-1997)
- Ford F-250 HD (1997)
- Ford Econoline Super Duty (1996-1998)
- Ford E-350 Econoline Club Wagon (1995-1998)
- Ford E-350 Econoline (1995-1998)
- Ford F-350 (1994-1997)
- Ford F-250 (1994-1996)
- Ford F-Super Duty (1995-1997)
