(888) 312-8812 Login SignupSTANDARD IGNITION TBC559 Turbocharger - Remfd - Diesel
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
STANDARD IGNITION TBC559 Part Description
Manufacturer
Product Description
Turbocharger - Remfd - Diesel
Features & Benefits
- Each unit is carefully identified, and completely disassembled to is core assembly. All core assemblies are cleaned and inspected to ensure core quality guidelines are meet before reassembly begins therefore reducing failure rate
- Our reman turbos come with new rotating, journal and thrust bearings; seals are 100% replaced; and all mating surfaces/passages are reconditioned which provides a longer-lasting unit.

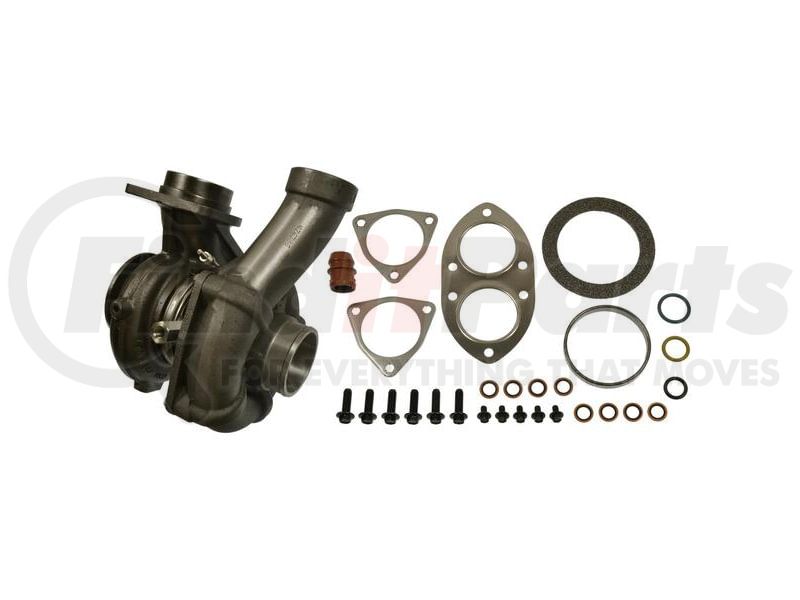

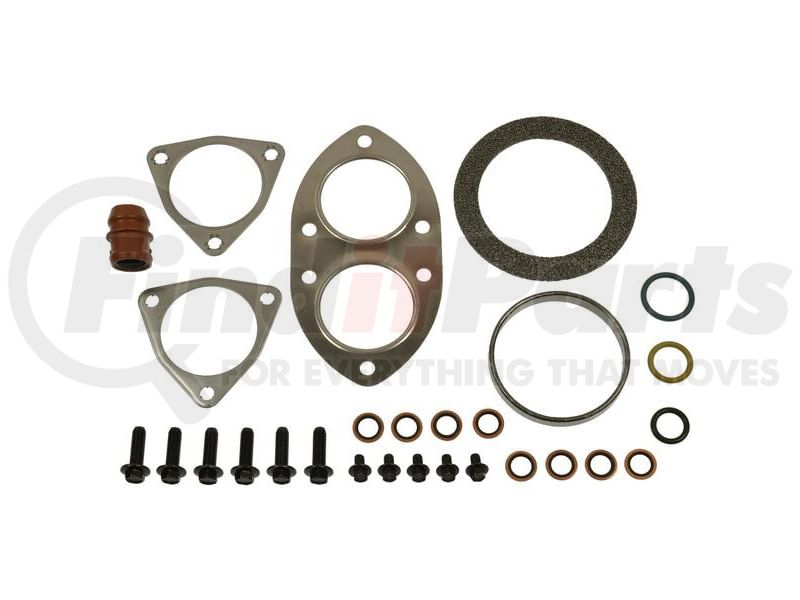

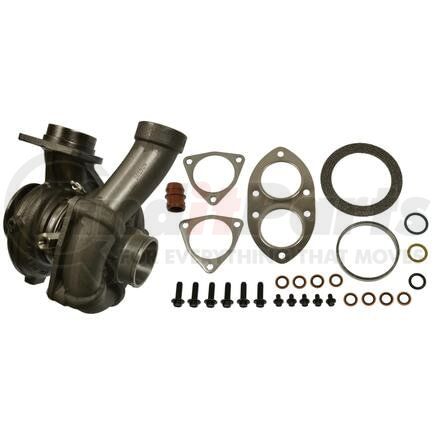

- Comes complete with wastegate control solenoid, necessary gaskets and mounting hardware for ease of installation
- Our reman turbo's wheels, shafts and corresponding cores are checked against OE tolerance specification and either reconditioned or replaced as needed for trouble free operation.
STANDARD IGNITION TBC559 Specifications
Product Attributes
| Center Housing Cooling Type | Water |
| Contents | Turbocharger Installation Kit |
| Hardware Included | Yes |
| Hose Connector Quantity | 2 |
| New or Reman | Remanufactured |
| Compressor Inlet Outside Diameter | 76.708 |
| Compressor Outlet Outside Diameter | 70.866 |
| Cooling Method | Water |
| Exhaust Brake Included | No |
| Exhaust Inlet Outside Diameter (mm | 84.32 |
| Exhaust Manifold Included | No |
| Exhaust Outlet Outside Diameter (m | 75.946 |
| Gaskets Included | Gaskets; Seals |
| Geometry Type | Fixed |
| Oil Supply Line Included | No |
| Sensor Included | No |
| Speed Sensor Included | No |
| Temperature Sensor Included | No |
| Wastegate Actuator Included | No |
| Mounting Hardware Included | Yes |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8414800500 |
| Warranty Distance | 36000 |
| Warranty Distance UOM | MI |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| UPC | 00727943610317 |
STANDARD IGNITION TBC559 Cross References
| Brand | Part Number |
|---|---|
| BWD | 28694 |
| Cardone Reman | 2N-221, 2T-221 |
| Dorman | 667-274 |
| Echlin | 2-55097, TRB235R |
| Ford | 8C3Z6K682A, 8C3Z6K682AARM |
| Garrett | 479523 |
| MAHLE | 014TC2110100, 014TC2110110, 014TC21101100, 014TC21103000, 014TC21103100, 014TC21105100 |
| Motorcraft | TC11-RM |
| N/A | 479523 |
| NAPA Solutions | 77602881 |
| OE-TurboPower | D1002 |
| Pure Power Technologies | 8661-PP |
| Rotomaster | S1640101N, S8640101R |
| Sorensen | 850-1059 |
STANDARD IGNITION TBC559 Fits Vehicles
- Ford F-550 Super Duty (2008-2010)
- Ford F-450 Super Duty (2008-2010)
- Ford F-350 Super Duty (2008-2010)
- Ford F-250 Super Duty (2008-2010)
